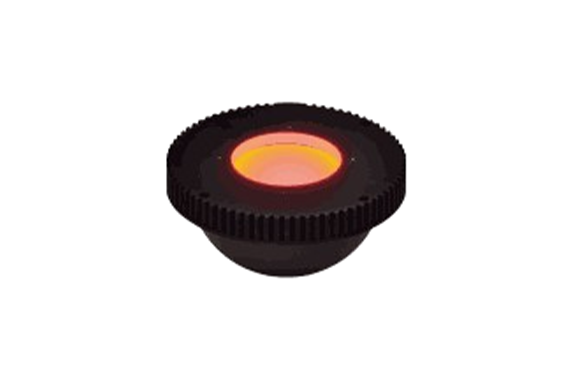

CCS HPD-PF-75RD High Power Strobe
Manufacturer: CCS Inc.
Model: HPD-PF-75RD
Features
- This Light Unit emits red light and has an outer diameter of 91 mm, an inner diameter of 41 mm, and a height of 45.1 mm.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 636 nm typ. |
| Dimensions | Outer diameter 91 mm, Inner diameter 41 mm, Height 45.1 mm |
| Peak current | 12.0 A |
| Input voltage | 48 VDC max. |
| Polarity & signal | 1: (+), 2: (+), 3: (-), 4: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, Resin |
| Input connector | ELP-04NV |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 150 g |
| Accessories | User Manual |
| Notes | Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%). * The duty cycle is expressed by the following equation: Duty cycle (%) = 100 x Strobe time / Strobe cycle |
Dimensions (mm)
