CCS Inc.

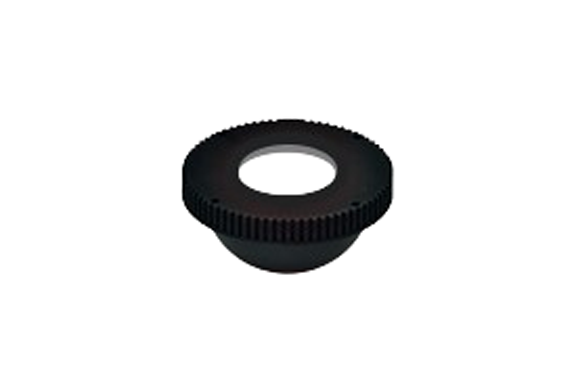

CCS HPDS-75SW Dome
Manufacturer: CCS Inc.
Model: HPDS-75SW
Feature
- This Light Unit emits red light and has an outer diameter of 91 mm, an inner diameter of 41 mm, and a height of 45.1 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 6,500 K typ. |
| Dimensions | Outer diameter 91 mm, Inner diameter 41 mm, Height 45.1 mm |
| Input voltage | 12 VDC |
| Power consumption | 14 W max. |
| Polarity & signal | 1: ( + ) , 2: ( – ) |
| Cable length | 500 mm |
| Case material | Aluminum alloy, resin |
| Input connector | SMR-02V-B |
| Conformed standards | CE, RoHS, EN 62471 |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 70°C, Humidity: 35% to 5% RH (with no condensation) |
| Cooling method | Natural air cooling |
| Weight | 130 g |
| Accessories | User Manual |

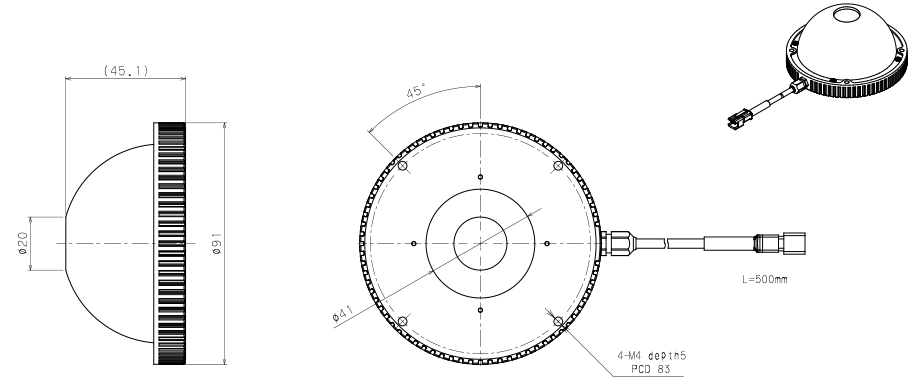

Dimensions (mm)
