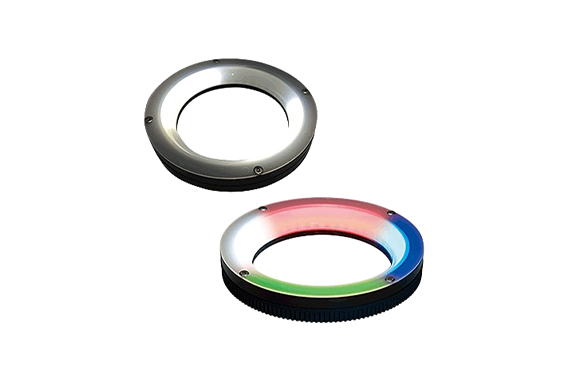

CCS HPR2-150XX-DV4SM8 Segmented Ring Lights
Manufacturer: CCS Inc.
Model: HPR2-150XX-DV4SM8
Features
- HPR2-150XX-DV4SM8.
- Segmented Ring Light Unit.
- Has a very diffused output and comes with four independently controllable quadrants.
- Outer diameter 166 mm, inner diameter 116 mm, height 26.4 mm.
“XX” in the model name indicates the LED color with one of the following letters: SW (white) or RD (red).
Specifications
| LED color | “XX” in the model name indicates the LED color with one of the following letters: SW (white) or RD (red). |
|---|---|
| Peak wavelength | RD: 635 nm typ., SW: 6,000 K typ. |
| Dimensions | Outer diameter 166 mm, Inner diameter 116 mm, Height 26.4 mm |
| Input voltage | 24 VDC |
| Power consumption | RD: 25.5 W max., SW: 25 W max. |
| Polarity & signal | 1: (+), 2: (-), 3: (+), 4: (-), 5: (+), 6: (-), 7: (+), 8: (-) |
| Cable length | 300 mm |
| Input connector | SMR-08V-B |
| Conformed standards | CE, RoHS |
| Operating temperature and humidity | Temperature: 0 to 40℃, Humidity: 20% to 85%RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60℃, Humidity: 20% to 85%RH (with no condensation) |
Dimensions (mm)
