CCS Inc.

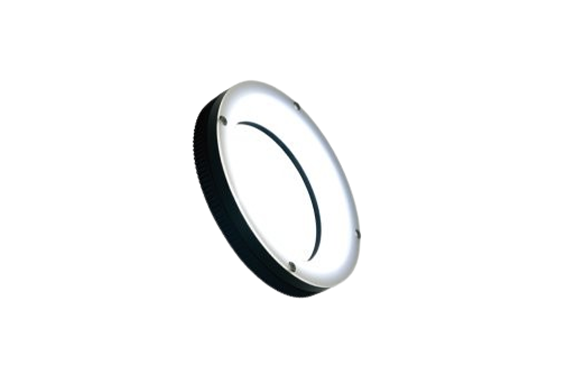

CCS HPR2 Series Ring
Manufacturer: CCS Inc.
Model: HPR2 Series
Features
Supports from low angles to high angles
- Provides diffused light from the LEDs without waste using a unique illuminating mechanism.

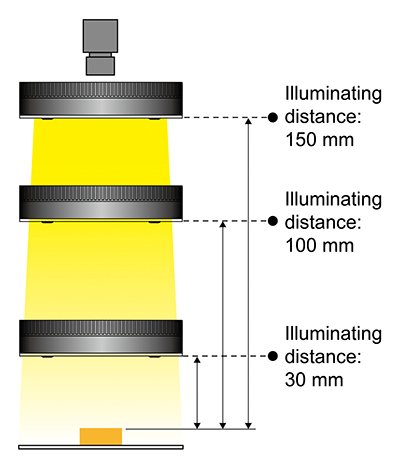

- Even if the distance from the workpiece to the Light Unit is changed, there is little variation in the uniform region, and it can therefore be used for a wide variety of uses.
Achieves a uniform region with a high degree of freedom
Specifications

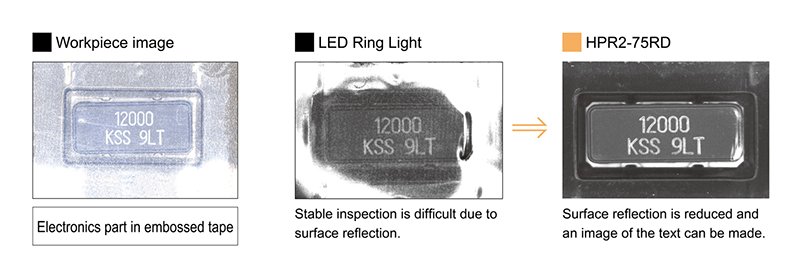

| Description | Printing inspection |
|---|---|

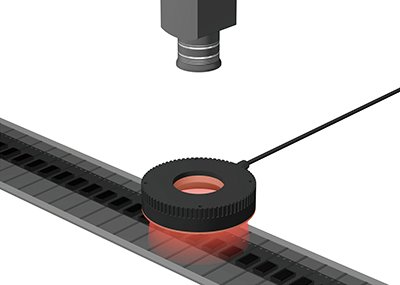

| Workpiece | Electronics part in embossed tape |
| Conventional lighting | LED Ring Light |
| New lighting | HPR2-75RD |
| Result | Improved uniformity |
Exterior imaging of a multi-colored workpiece
| Description | Visual inspection |
|---|---|
| Workpiece | Smartphone case |
| Conventional lighting | – |
| New lighting | HPR2-200FC: full color (RGB) type |
| Result | Allows for color determination. |
