CCS Inc.

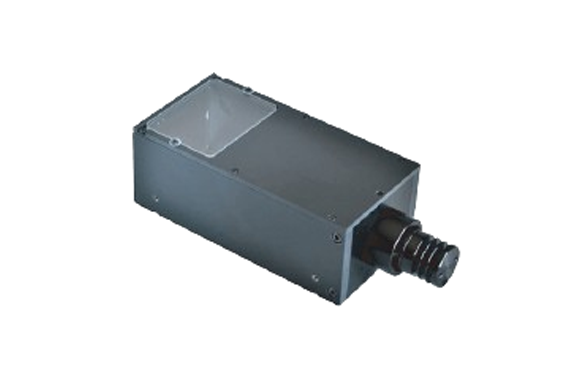

CCS KT-MFU-54X40-HLV Coaxial
Manufacturer: CCS Inc.
Model: KT-MFU-54X40-HLV
Features
- KT-MFU-54X40-HLV backlight unit.
- KT-MFU Series are collimated backlight units that can be used in combination with the HLV series spot lighting equipment.
- They are capable of higher power light emission than MFU series.
- Measures W 66mm x D131 to 166mm x H48mm.
Specifications
| Dimensions | W 66 mm x D 131 to 166 mm x H 48 mm |
|---|---|
| Case material | Aluminum alloy, Steel sheet, Resin |
| Conformed standards | RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 400 g max. |
| Accessories | Aperture (φ0.5 mm) x 1, Aperture (φ1.0 mm) x 1, Aperture (φ2.0 mm) x 1, Set of screws (M3 x 3 mm black) x 3, M3 hexagonal wrench x 1 *The φ1.0 aperture is fitted with a diffusion plate at the time of factory shipment. *Replacing with one of the additional apertures supplied allows the light quantity (high / low) and light distribution (wide / narrow) to be changed. |

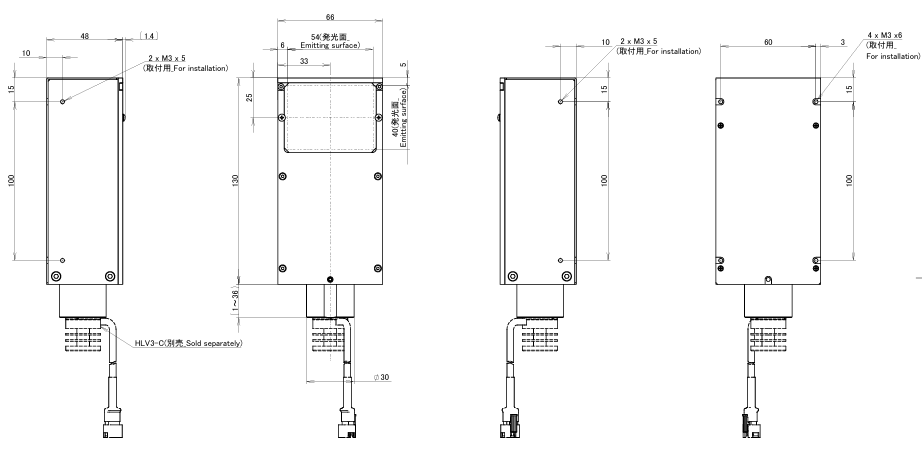

Dimensions (mm)
