CCS Inc.

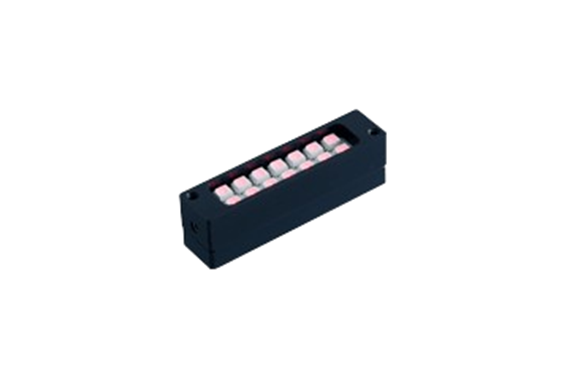

CCS LDL2-33X8IR850 Bar (Area)
Manufacturer: CCS Inc.
Model: LDL2-33X8IR850
Features
- This IR Light Unit uses LEDs with a peak wavelength of 850 nm, measures 44 x 10.4 x 13 mm (width x depth x height).
- The light-emitting surface measures 33 x 8 mm.
- The directional characteristics are wide.
Specifications
| LED color | Infrared |
|---|---|
| Peak wavelength | 850 nm typ. |
| Dimensions | W 44 mm x D 10.4 mm x H 13 mm |
| Input voltage | 24VDC |
| Power consumption | 1.3 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, POM |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 20 g |
| Accessories | Instruction Guide, Handling Precautions for Infrared LED Lights |
