CCS Inc.
CCS LDL2-458X30GR2 Bar (Area)
Manufacturer: CCS Inc.
Model: LDL2-458X30GR2
Features

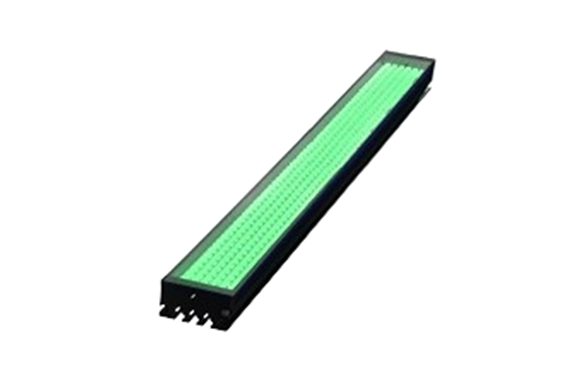

- LDL2-458X30GR2. (Special Orders) This Light Unit emits green light and measures 470 x 34 x 20 mm (width x depth x height).
- The light-emitting surface measures 458 x 30 mm.
- The directional characteristics are narrow.
- High-power type.
Specifications
| LED color | Green |
|---|---|
| Peak wavelength | 520 nm typ. |
| Dimensions | W 470 mm x D 34 mm x H 20 mm |
| Input voltage | 24VDC |
| Power consumption | 57 W max. |
| Polarity & signal | 1: (+), 2: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | ELP-02V |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 500 g Max. |
| Accessories | User Manual |
Dimensions (mm)
