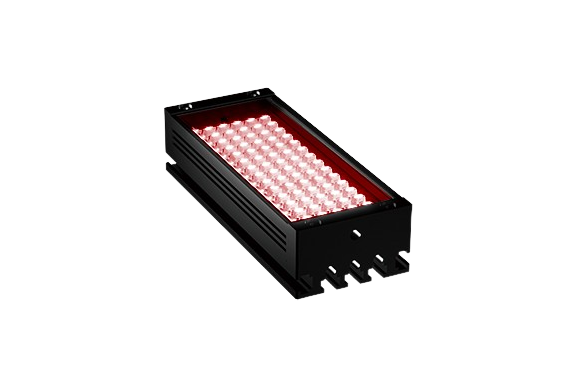

CCS LDL2-74X30IR155 IR Lights [Infrared Lighting] (over 1000-nm type)
Manufacturer: CCS Inc.
Model: LDL2-74X30IR155
Features
- Width 86 mm x depth 34 mm x height 20 mm, light emitting surface 74 mm x 30 mm, peak wavelength 1550 nm, directivity is a Narrow-type bar type infrared illumination LDL2-74X30IR155 .
- We have a lineup of 6 types of wavelengths of the same type: 1050nm, 1200nm, 1300nm, 1450nm, 1550nm, and 1650nm.
Specifications
| LED color | Infrared |
|---|---|
| Peak wavelength | 1550 nm typ. |
| Dimensions | W 86 mm x D 34 mm x H 20 mm |
| Input voltage | 24VDC |
| Power consumption | 5.3 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 100 g max. |
| Accessories | User Manual |
| Notes | Directivity: Narrow-type |
Dimensions (mm)
