CCS Inc.

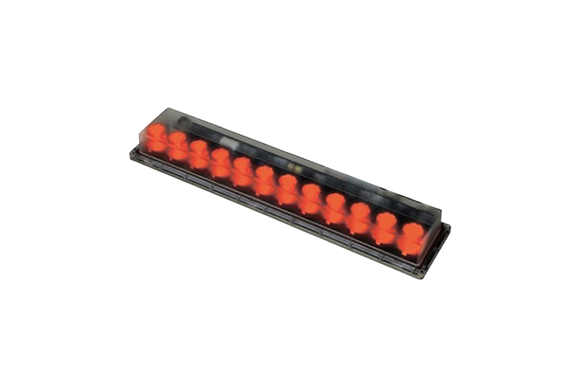

CCS LDLB-300RD-N Bar (Area)
Manufacturer: CCS Inc.
Model: LDLB-300RD-N
Features
- This Light Unit emits red light and measures 320 x 70 x 32 mm (width x depth x height).
- The light-emitting surface measures 300 x 24 mm.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 630 nm typ. |
| Dimensions | W 320 mm x D 70 mm x H 32 mm |
| Input voltage | 24 VDC (rating), 22.8 to 26.4 VDC (range) |
| Power consumption | 24 W max. |
| Case material | Aluminum alloy, resin |
| Input connector | M12 (5 pins, plug) |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 500 g max. |
| Accessories | User Manual |
| Caution | * The power supply for daisy-chained Light Units must provide sufficient output for all of the Light Units. When the Light Units are used in overdrive mode, the power supply must provide 6 A or more for each Light Unit. |
Dimensions (mm)
