CCS LDQ-150IR2-940 IR Lights [Infrared Lighting] (under 1000nm)
Manufacturer: CCS Inc.
Model: LDQ-150IR2-940
Features

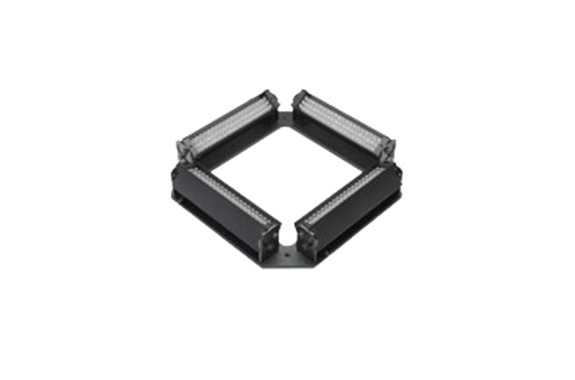

- Bar Lights are arranged in all four directions to form this Light Unit.
- This Light Unit adopts LEDs with a peak wavelength of 940 nm and measures 148 x 148 (width x depth).
Specifications
| LED color | Infrared |
|---|---|
| Peak wavelength | 940 nm typ. |
| Dimensions | W 148 mm x D 148 mm |
| Input voltage | 24VDC |
| Power consumption | 16 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, POM, Steel sheet |
| Input connector | SMR-03V-B x 4 |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 530 g max. |
| Accessories | User Manual |
| Caution | * This product uses infrared LEDs. You cannot visually sense the brightness, but infrared radiation comes out of the LEDs when they are on. * The peak wavelength range corresponds to IR-A (780 to 1,400 nm). * Infrared radiation in the IR-A range can damage your eyes. Never look at the infrared radiation directly. * Inform all persons in the area around this product of the dangers of infrared LED. |
Dimensions (mm)
