CCS Inc.

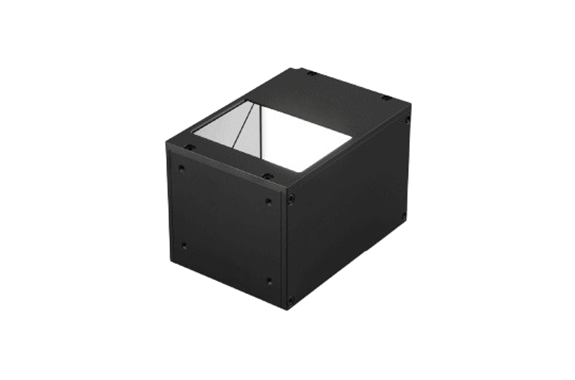

CCS LFV-G-PF-35SW High Power Strobe
Manufacturer: CCS Inc.
Model: LFV-G-PF-35SW
Features
- This coaxial light for high-resolution cameras emits white light and measures 46 x 63 x 39 mm (width x depth x height). The light-emitting section measures 34 x 38 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 4800 K typ. |
| Dimensions | W 46 mm x D 63 mm x H 39 mm |
| Peak current | 8.0 A |
| Input voltage | 48 VDC max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-), 4: NC |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | ELP-04NV |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 % to 85 %RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60 °C, Humidity: 20 % to 85 %RH (with no condensation) |
| Cooling method | Natural air cooling |
| Weight | 150 g |
| Accessories | User Manual |
| Notes | Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%). * The duty cycle is expressed by the following equation: Duty cycle (%) = 100 x Strobe time / Strobe cycle |
Dimensions (mm)
