CCS Inc.

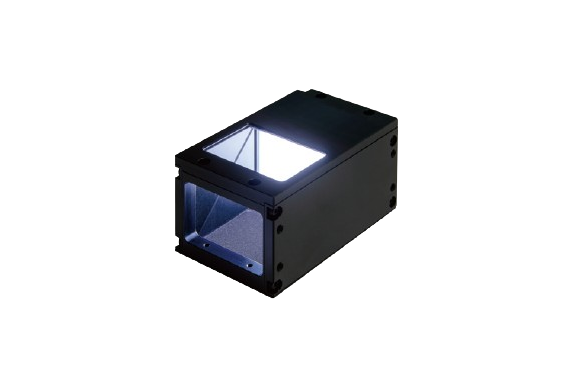

CCS LFV3-100RD-RA(A) / LFV3-100SW-RA(A) / LFV3-100BL-RA(A) Coaxial
Manufacturer: CCS Inc.
Model: LFV3-100RD-RA(A) / LFV3-100SW-RA(A) / LFV3-100BL-RA(A)
Features
- 110mm (W) x 148mm (D) x 105mm (H) coaxial light with a light emitting surface of 100mm x 102mm.
- Available colors: red (LFV3-100RD-RA(A)), white (LFV3-100SW-RA(A)), and blue (LFV3-100BL-RA(A)).
- 90-degree position change of a standard coaxial light illumination port.
Specifications
| LED color | LFV3-100RD-RA(A)：Red LFV3-100SW-RA(A)：White LFV3-100BL-RA(A)：Blue |
|---|---|
| Dimensions | W 110 mm x D 148 mm x H 105 mm |
| Input voltage | 24 VDC |
| Power consumption | LFV3-100RD-RA(A) : 22 W max. LFV3-100SW-RA(A) : 27 W max. LFV3-100BL-RA(A) : 27 W max. |

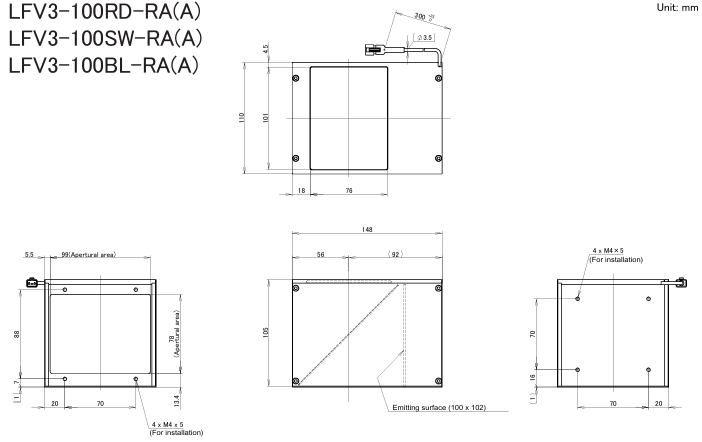

Dimensions (mm)
