CCS Inc.
CCS LFV3-130RD-RA(A) / LFV3-130SW-RA(A) / LFV3-130BL-RA(A) Coaxial
Manufacturer: CCS Inc.
Model: LFV3-130RD-RA(A) / LFV3-130SW-RA(A) / LFV3-130BL-RA(A)
Features

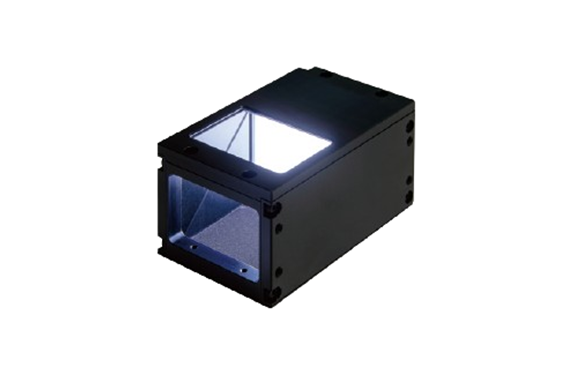

- 142mm (W) x 182mm (D) x 136mm (H) coaxial light with a light emitting surface of 130mm x 134mm.
- Available colors: red (LFV3-130RD-RA(A)), white (LFV3-130SW-RA(A)), and blue (LFV3-130BL-RA(A)).
- 90-degree position change of a standard coaxial light illumination port.
Specifications
| LED color | LFV3-130RD-RA(A)：Red LFV3-130SW-RA(A)：White LFV3-130BL-RA(A)：Blue |
|---|---|
| Dimensions | W 142 mm x D 182 mm x H 136 mm |
| Input voltage | 24 VDC |
| Power consumption | LFV3-130RD-RA(A) : Contact us LFV3-130SW-RA(A) : 46 W max. LFV3-130BL-RA(A) : Contact u |

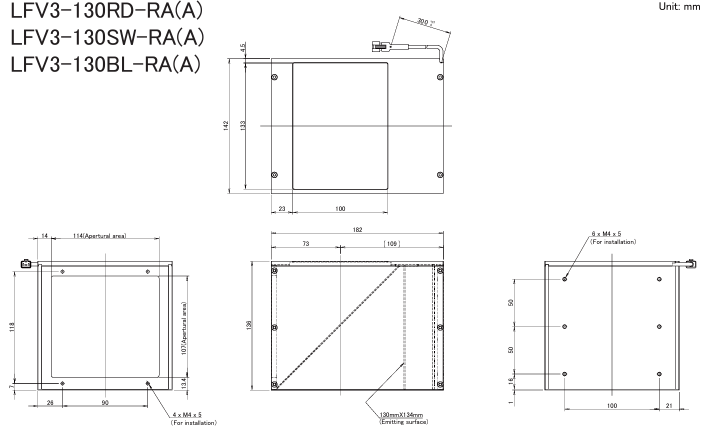

Dimensions (mm)
