CCS Inc.
CCS LFV3-35RD-RA(A) / LFV3-35SW-RA(A) / LFV3-35BL-RA(A) Coaxial
Manufacturer: CCS Inc.
Model: LFV3-35RD-RA(A) / LFV3-35SW-RA(A) / LFV3-35BL-RA(A)
Features
- 46mm (W) x 75mm (D) x 40mm (H) coaxial light with a light emitting surface of 34mm x 38mm.
- Available colors: red (LFV3-35RD-RA(A)), white (LFV3-35SW-RA(A)), and blue (LFV3-35BL-RA(A)).
- 90-degree position change of a standard coaxial light illumination port.
Specifications
| LED color | LFV3-35RD-RA(A)：Red LFV3-35SW-RA(A)：White LFV3-35BL-RA(A)：Blue |
|---|---|
| Dimensions | W 46 mm x D 75 mm x H 40 mm |
| Input voltage | 24 VDC |
| Power consumption | LFV3-35RD-RA(A) : 3.1 W max. LFV3-35SW-RA(A) : 3.7 W max. LFV3-35BL-RA(A) : 3.1 W max. |

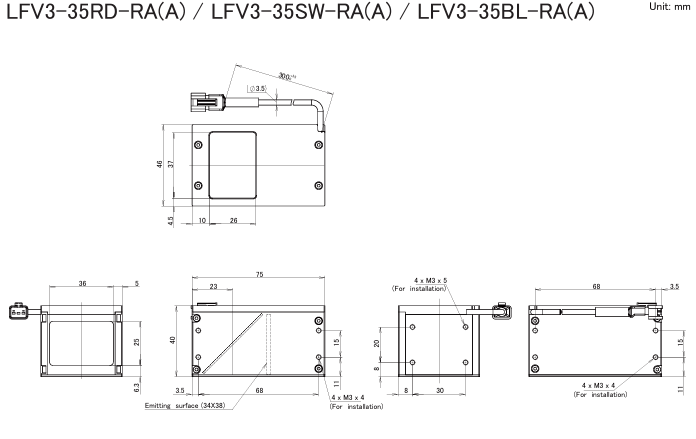

Dimensions (mm)
