CCS Inc.

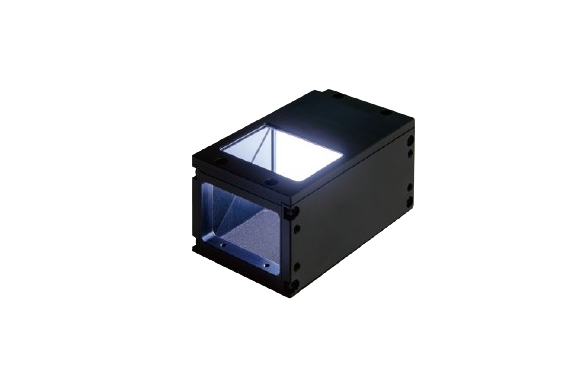

CCS LFV3-50RD-RA(A) / LFV3-50SW-RA(A) / LFV3-50BL-RA(A) Coaxial
Manufacturer: CCS Inc.
Model: LFV3-50RD-RA(A) / LFV3-50SW-RA(A) / LFV3-50BL-RA(A)
Features
- 60mm (W) x 94mm (D) x 58mm (H) coaxial light with a light emitting surface of 52mm x 52mm.
- Available colors: red (LFV3-50RD-RA(A)), white (LFV3-50SW-RA(A)), and blue (LFV3-50BL-RA(A)).
- 90-degree position change of a standard coaxial light illumination port.
Specifications
| LED color | LFV3-50RD-RA(A)：Red LFV3-50SW-RA(A)：White LFV3-50BL-RA(A)：Blue |
|---|---|
| Dimensions | W 60 mm x D 94 mm x H 58 mm |
| Input voltage | 24 VDC |
| Power consumption | LFV3-50RD-RA(A) : 8.1 W max. LFV3-50SW-RA(A) : 11 W max. LFV3-50BL-RA(A) : 9.1 W max. |

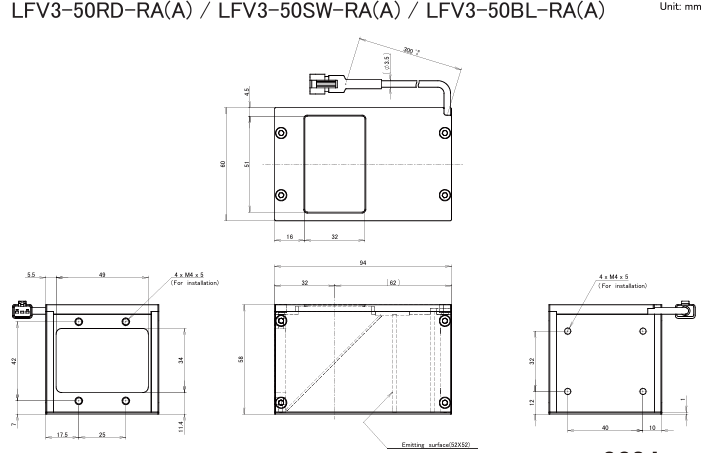

Dimensions (mm)
