CCS Inc.

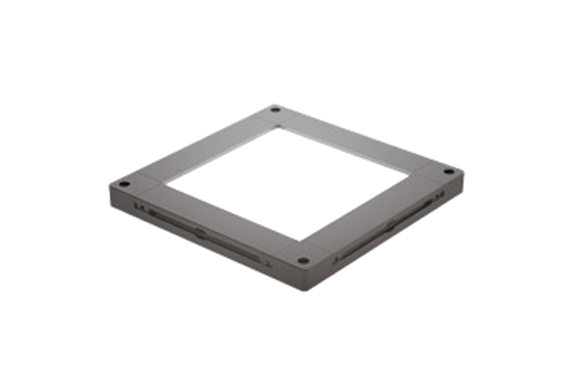

CCS LFX3-100SW(A) Flat Dome
Manufacturer: CCS Inc.
Model: LFX3-100SW(A)
Feature
- This Light Unit emits white light and measures 143 x 143 x 13.1 mm (width x depth x height).
- The light-emitting surface measures 100 x 100 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 6,500 K typ. |
| Dimensions | W 143 mm x D 143 mm x H 13.1 mm |
| Input voltage | 24 VDC |
| Power consumption | 23 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, Resin (protective plate, light-guiding diffusion plate) |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 400 g max. |
| Accessories | User Manual |
Dimensions (mm)
