CCS Inc.
CCS LFX3 Series Flat Dome
Manufacturer: CCS Inc.
Model: LFX3 Series
Features

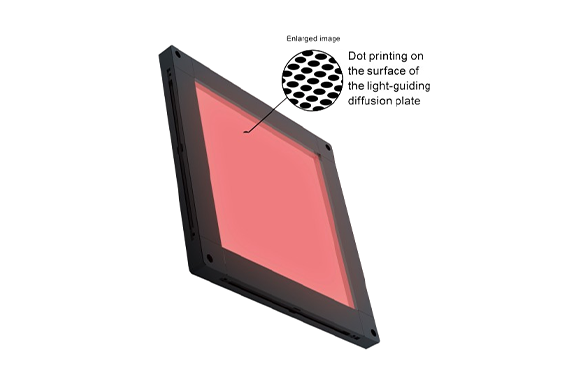

- High brightness, light-weight compact design, and wide field of view.
High output to match high-speed inspection
- The LFX3-series Light Units are high-power Flat Dome Lights perfect for fast-moving production lines. The brightness of the white lights has been tripled.

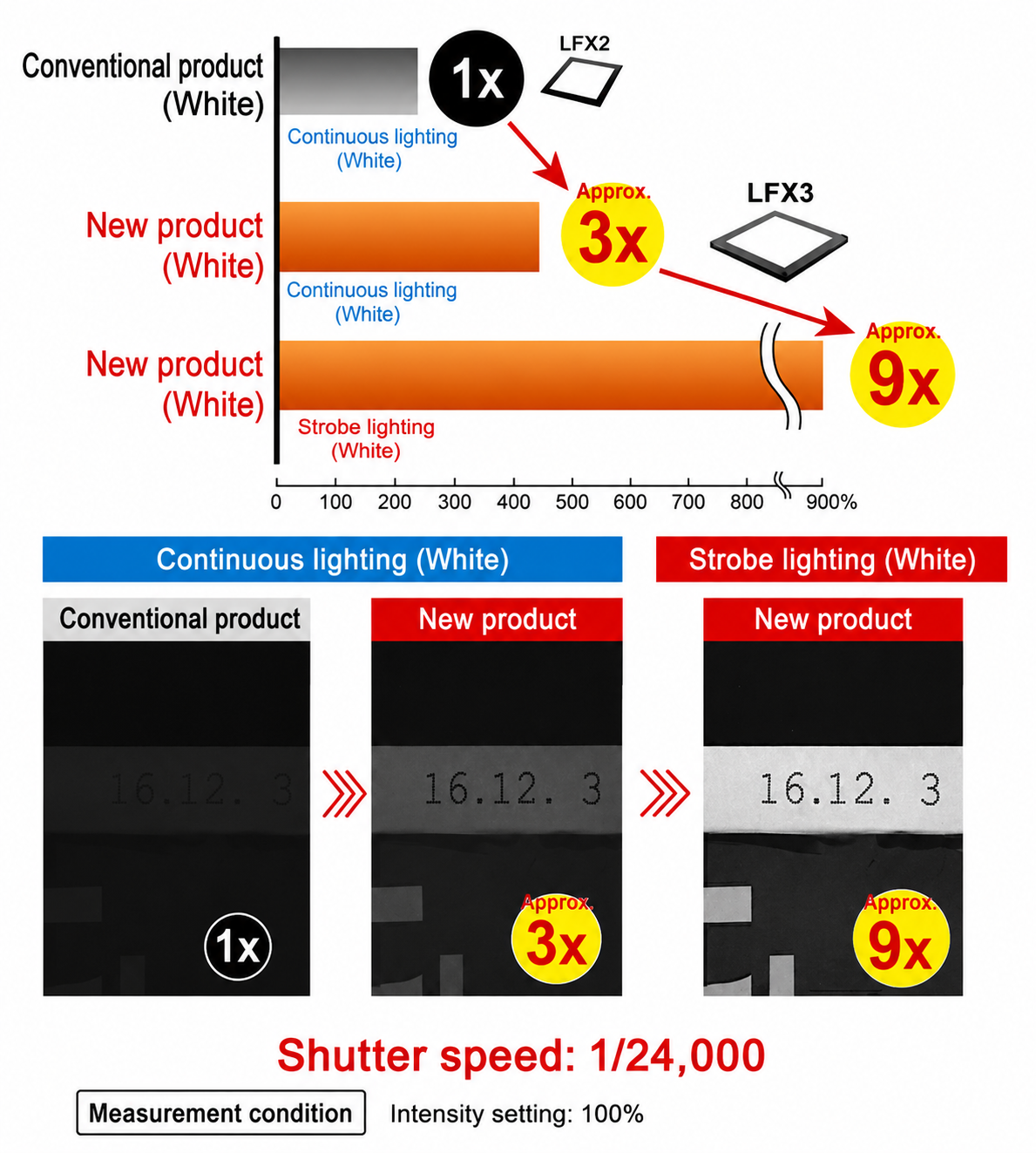

- Brightness comparison between the LFX2-100SW and LFX3-100SW.
Specifications

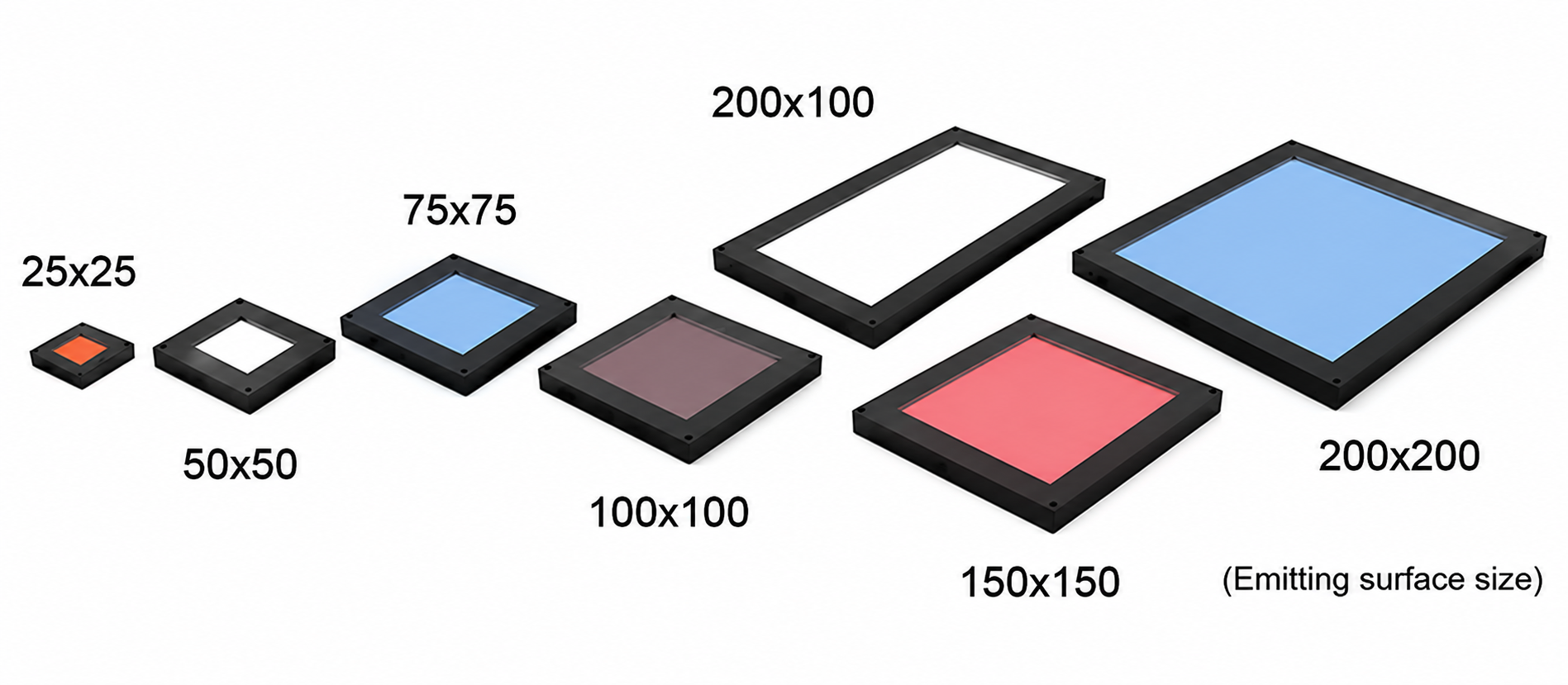

The Light Unit is available in 7 sizes and 4 LED colors: red, white, blue, and infrared.
| series | Emitting surface size(mm) | LED color |
|---|---|---|
| LFX3-25 series | 25×25 | Red/White/Blue/IR |
| LFX3-50 series | 50×50 | |
| LFX3-75 series | 75×75 | |
| LFX3-100 series | 100×100 | |
| LFX3-150 series | 150×150 | |
| LFX3-200X100 series | 200×100 | |
| LFX3-200 series | 200×200 |

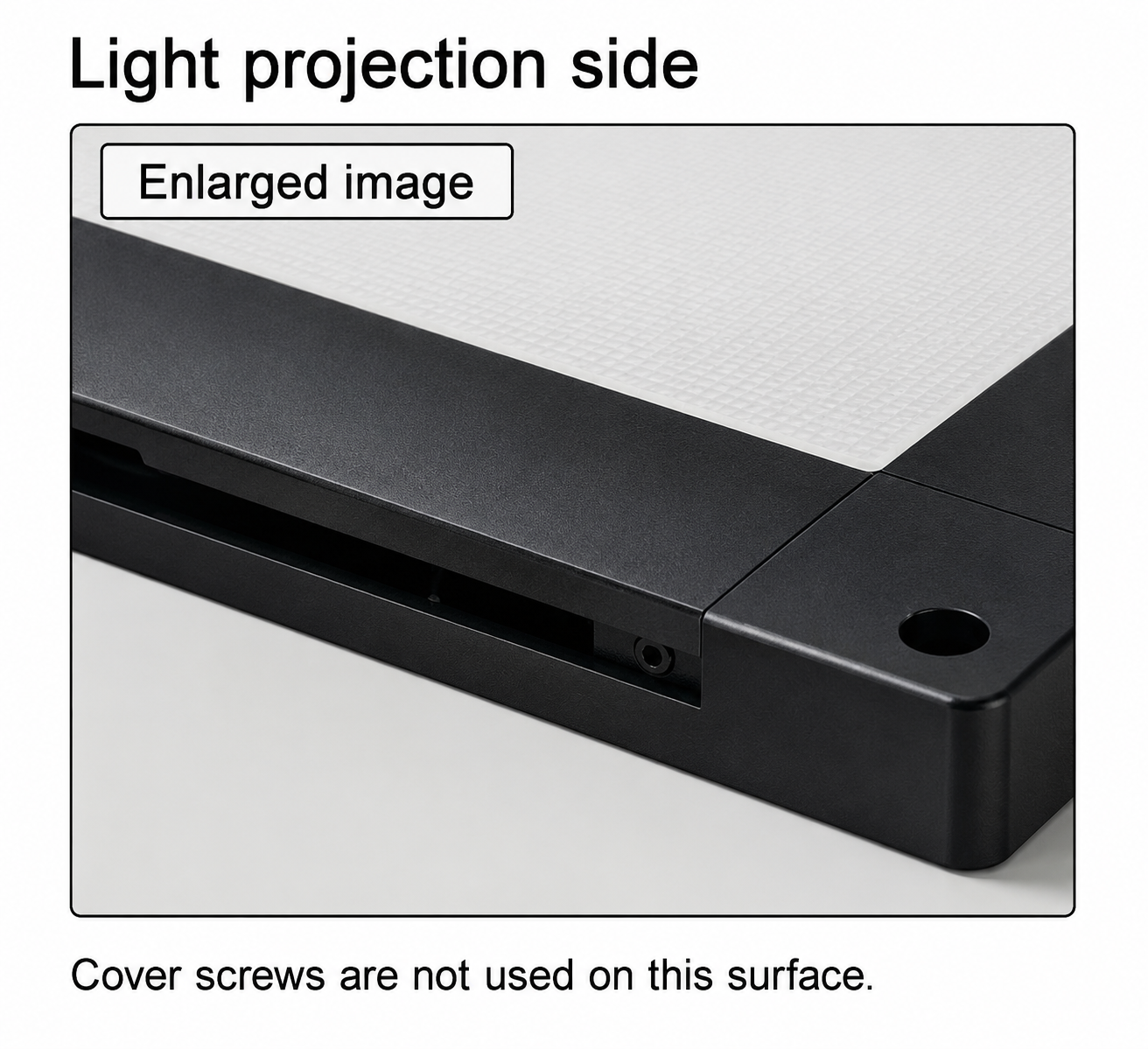

Designed to prevent falling screws
- No worries of screws loosening and falling. Cover screws are not used on the light projection side of the Light Unit.
- ※The screws that are used to install the Light Unit are not considered.
