CCS Inc.
CCS LN-EBA-n△ Line (Diffused Lighting)
Manufacturer: CCS Inc.
Model: LN-EBA-n△
Features
High-Illuminance Tunnel-Dome Lights
- Light from the LEDs is scattered inside the light unit to evenly illuminate the whole surface of the workpiece, reducing overexposure and underexposure
- Fan-less cooling system suitable for use in a clean room environment such as for printed circuit board production

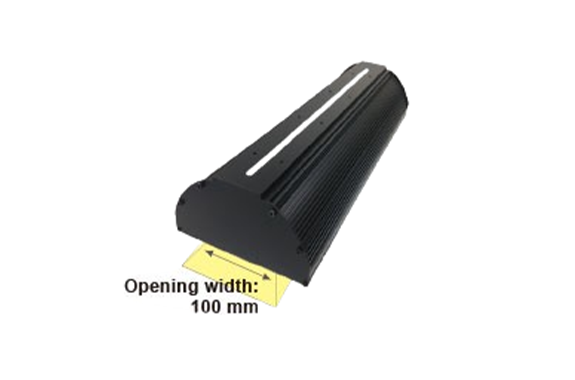

- Opening width : 100mm
* ”△” mark is the model name indicates the LED color with one of the following letters : SW(White), RD(Red), or BL (Blue).
* ”n” is the model name indicates the emitting surface length from 100 mm to 1,600 mm.
* This is the CCS AItec product. Warranty for this product differs from CCS standard lighting. Contact your local sales office for details.
Specifications
| LED color | SW (white), RD (red), or BL (blue). |
|---|---|
| Conformed standards | CE, UKCA, RoHS, IEC 62471(Exempt) |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 30% to 85%RH (with no condensation) |
| Storage temperature and humidity | Temperature: 0 to 50°C, Humidity: 30% to 85%RH (with no condensation) |
| Cooling method | Natural air cooling |
| Notes | Opening width: 100 mm |
Dimensions (mm)
