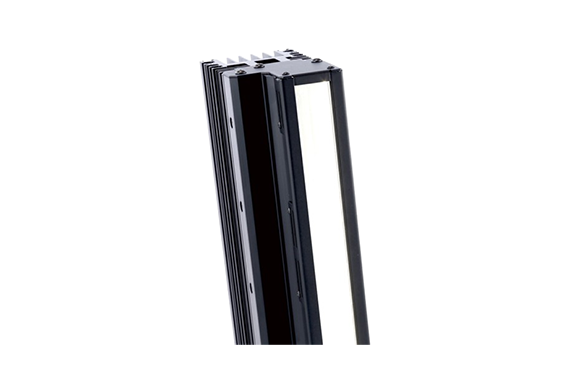

CCS LNLP-300SW Line (Convergent Lighting)
Manufacturer: CCS Inc.
Model: LNLP-300SW
Features
- This Line Light Unit emits white light and measures 361 x 60.2 x 126 mm (width x depth x height).
- The light-emitting surface measures 300 x 21 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 5,800 K typ. |
| Dimensions | W 361 mm x D 60.2 mm x H 126mm |
| Power consumption | 108 W max. |
| Case material | Aluminum alloy, Steel sheet, Resin |
| Input connector | Metal connector PRC04-21A26S-37M (Tajimi Electronics co.,ltd) |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 3,000 g max. |
| Accessories | Instruction Guide, FG line (2 m), M4 mounting screw |
Dimensions (mm)
Standard products | Model name | A (Emitting surface) | B (Full length) | Special orders | Model name | A (Emitting surface) | B (Full length) |
| LNLP-100SW | 100 | 161 | LNLP-1600SW | 1,600 | 1,706 | ||
| LNLP-200SW | 200 | 261 | LNLP-1700SW | 1,700 | 1,806 | ||
| LNLP-300SW | 300 | 361 | LNLP-1800SW | 1,800 | 1,906 | ||
| LNLP-400SW | 400 | 461 | LNLP-1900SW | 1,900 | 2,006 | ||
| LNLP-500SW | 500 | 561 | LNLP-2000SW | 2,000 | 2,106 | ||
| LNLP-600SW | 600 | 661 | LNLP-2100SW | 2,100 | 2,206 | ||
| LNLP-700SW | 700 | 761 | LNLP-2200SW | 2,200 | 2,306 | ||
| LNLP-800SW | 800 | 861 | LNLP-2300SW | 2,300 | 2,406 | ||
| LNLP-900SW | 900 | 961 | LNLP-2400SW | 2,400 | 2,506 | ||
| LNLP-1000SW | 1,000 | 1,061 | LNLP-2500SW | 2,500 | 2,606 | ||
Special orders | LNLP-1100SW | 1,100 | 1,161 | LNLP-2600SW | 2,600 | 2,706 | |
| LNLP-1200SW | 1,200 | 1,261 | LNLP-2700SW | 2,700 | 2,806 | ||
| LNLP-1300SW | 1,300 | 1,361 | LNLP-2800SW | 2,800 | 2,906 | ||
| LNLP-1400SW | 1,400 | 1,461 | LNLP-2900SW | 2,900 | 3,006 | ||
| LNLP-1500SW | 1,500 | 1,561 | LNLP-3000SW | 3,000 | 3,106 |
