Manufacturer: CCS Inc.
Model: LNSD-1000SW(A)

Features

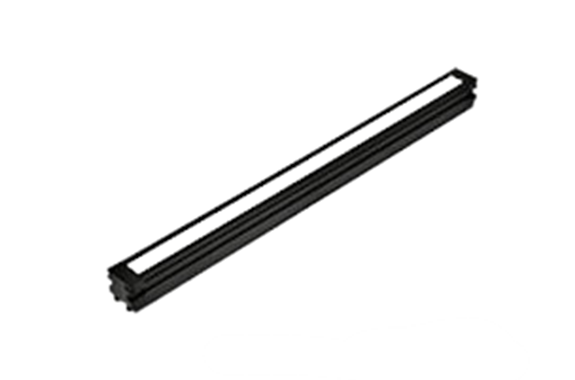

• This Light Unit emits white light and measures W 1030 x D 30 x H 32.5 mm.
• The light-emitting surface measures 1000 x 15 mm.
• High luminance type.

Note 1: There are two connectors only for the Light Unit whose length of the emitting surface is more than 1,200 mm.
Note 2: There are reinforcing metal fittings only for the Light Unit whose length of the emitting surface is more than 1,600 mm.

Specifications

LED color	White
Correlated color temperature	6,000 K typ.
Dimensions	W 1,030 x D 30 x H 32.5 mm
Input voltage	24VDC
Power consumption	101 W max.
Polarity & signal	1: (+), 2: (-)
Cable length	300 mm
Case material	Aluminum alloy, resin
Input connector	ELP-02V
Conformed standards	CE, UKCA, RoHS, IEC 62471（Low risk）
Operating temperature and humidity	Temperature: 0 to 50°C, Humidity: 20 to 85%RH (with no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Natural air cooling
Weight	1,370 g max.
Accessories	User Manual

Dimensions (mm)
