Manufacturer: CCS Inc.
Model: LNSD-100RD

Features

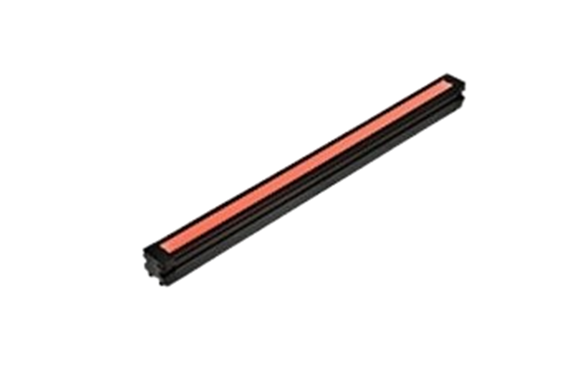

• This Light Unit emits red light and measures W 130 x D 30 x H 32.5 mm.
• The light-emitting surface measures 100 x 15 mm.
• High luminance type.

Note 1: There are two connectors only for the Light Unit whose length of the emitting surface is more than 1,200 mm.
Note 2: There are reinforcing metal fittings only for the Light Unit whose length of the emitting surface is more than 1,600 mm.

Specifications

LED color	Red
Peak wavelength	631 nm typ.
Dimensions	W 130 x D 30 x H 32.5 mm
Input voltage	24VDC
Power consumption	11W max.
Polarity & signal	1: (+), 2: (-)
Cable length	300 mm
Case material	Aluminum alloy, resin
Input connector	ELP-02V
Conformed standards	CE, UKCA, RoHS, IEC 62471（Exempt）
Operating temperature and humidity	Temperature: 0 to 50°C, Humidity: 20 to 85%RH (with no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Natural air cooling
Weight	200 g max.
Accessories	User Manual

Dimensions (mm)

Standard products	Model name	A (Emitting surface)	B (Full length)	Special orders	Model name	A (Emitting surface)	B (Full length)
	LNLP-100SW	100	161		LNLP-1600SW	1,600	1,706
	LNLP-200SW	200	261		LNLP-1700SW	1,700	1,806
	LNLP-300SW	300	361		LNLP-1800SW	1,800	1,906
	LNLP-400SW	400	461		LNLP-1900SW	1,900	2,006
	LNLP-500SW	500	561		LNLP-2000SW	2,000	2,106
	LNLP-600SW	600	661		LNLP-2100SW	2,100	2,206
	LNLP-700SW	700	761		LNLP-2200SW	2,200	2,306
	LNLP-800SW	800	861		LNLP-2300SW	2,300	2,406
	LNLP-900SW	900	961		LNLP-2400SW	2,400	2,506
	LNLP-1000SW	1,000	1,061		LNLP-2500SW	2,500	2,606
Special orders	LNLP-1100SW	1,100	1,161		LNLP-2600SW	2,600	2,706
	LNLP-1200SW	1,200	1,261		LNLP-2700SW	2,700	2,806
	LNLP-1300SW	1,300	1,361		LNLP-2800SW	2,800	2,906
	LNLP-1400SW	1,400	1,461		LNLP-2900SW	2,900	3,006
	LNLP-1500SW	1,500	1,561	Special orders	LNLP-3000SW	3,000	3,106
