CCS LNSD-1500RD-HU Line (Diffused Lighting)
Manufacturer: CCS Inc.
Model: LNSD-1500RD-HU

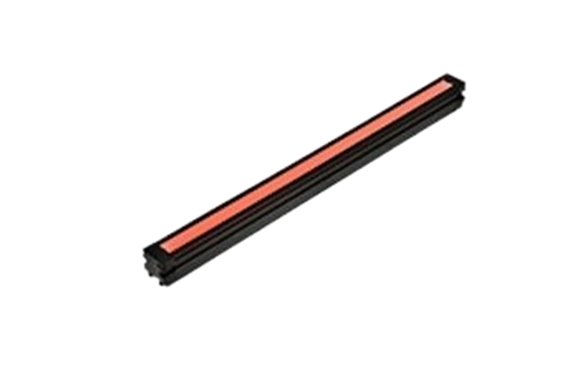

Feature
- This Light Unit emits red light and measures W 1530 x D 30 x H 32.5 mm.
- The light-emitting surface measures 1500 x 15 mm.
- High uniformity type.
- Note 1: There are two connectors only for the Light Unit whose length of the emitting surface is more than 1,200 mm.
- Note 2: There are reinforcing metal fittings only for the Light Unit whose length of the emitting surface is more than 1,600 mm.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 631 nm typ. |
| Dimensions | W 1,530 x D 30 x H 32.5 mm |
| Input voltage | 24VDC |
| Power consumption | 152 W max. |
| Polarity & signal | 1: (+), 2: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | ELP-02V x 2 |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 50°C, Humidity: 20 to 85%RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 2,040 g max. |
| Accessories | User Manual |

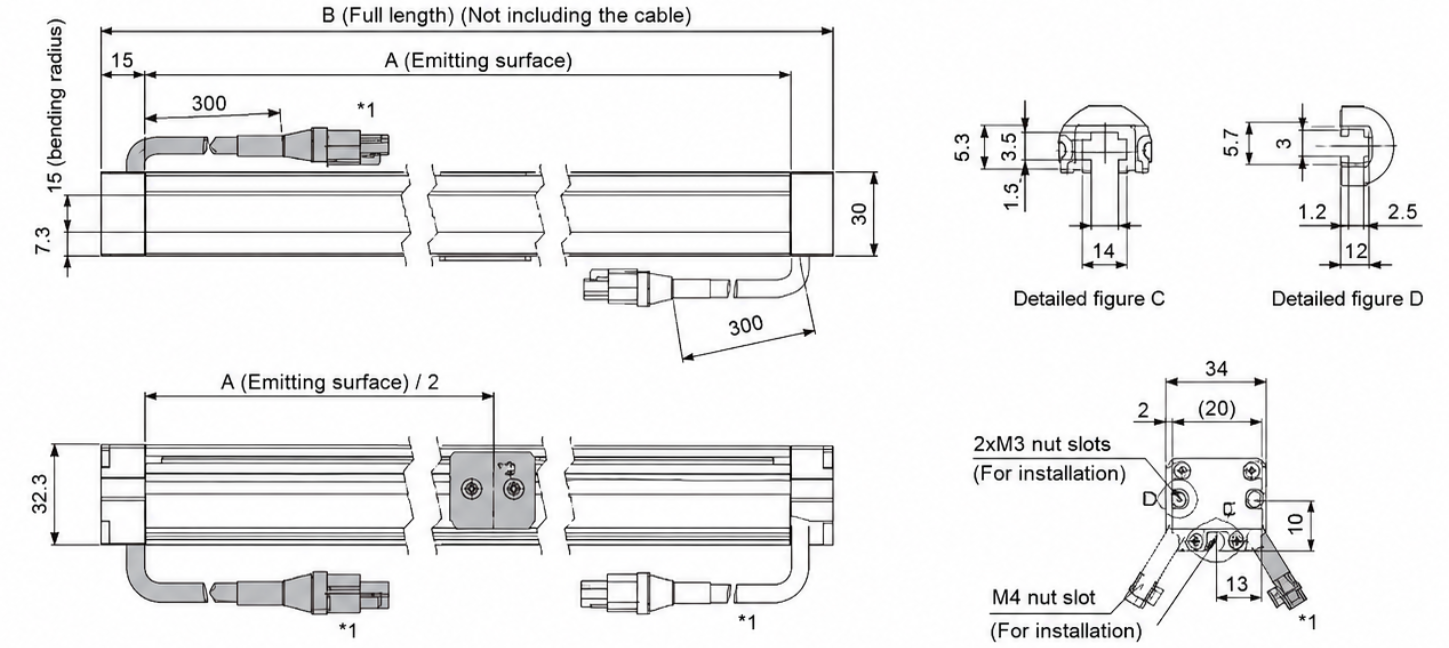

Dimensions (mm)
| Model Name | A (Emitting Surface) | B (Full Length) | Model Name | A (Emitting Surface) | B (Full Length) |
|---|---|---|---|---|---|
| LNSD-100SW/RD/BL | 100 | 150 | LNSD-1600SW/RD/BL | 1,600 | 1,650 |
| LNSD-200SW/RD/BL | 200 | 250 | LNSD-1700SW/RD/BL | 1,700 | 1,750 |
| LNSD-300SW/RD/BL | 300 | 350 | LNSD-1800SW/RD/BL | 1,800 | 1,850 |
| LNSD-400SW/RD/BL | 400 | 450 | LNSD-1900SW/RD/BL | 1,900 | 1,950 |
| LNSD-500SW/RD/BL | 500 | 550 | LNSD-2000SW/RD/BL | 2,000 | 2,050 |
| LNSD-600SW/RD/BL | 600 | 650 | LNSD-2100SW/RD/BL | 2,100 | 2,150 |
| LNSD-700SW/RD/BL | 700 | 750 | LNSD-2200SW/RD/BL | 2,200 | 2,250 |
| LNSD-800SW/RD/BL | 800 | 850 | LNSD-2300SW/RD/BL | 2,300 | 2,350 |
| LNSD-900SW/RD/BL | 900 | 950 | LNSD-2400SW/RD/BL | 2,400 | 2,450 |
| LNSD-1000SW/RD/BL | 1,000 | 1,050 | LNSD-2500SW/RD/BL | 2,500 | 2,550 |
| LNSD-1100SW/RD/BL | 1,100 | 1,150 | LNSD-2600SW/RD/BL | 2,600 | 2,650 |
| LNSD-1200SW/RD/BL | 1,200 | 1,250 | LNSD-2700SW/RD/BL | 2,700 | 2,750 |
| LNSD-1300SW/RD/BL | 1,300 | 1,350 | LNSD-2800SW/RD/BL | 2,800 | 2,850 |
| LNSD-1400SW/RD/BL | 1,400 | 1,450 | LNSD-2900SW/RD/BL | 2,900 | 2,950 |
| LNSD-1500SW/RD/BL | 1,500 | 1,550 | LNSD-3000SW/RD/BL | 3,000 | 3,050 |
