CCS LNSD-1700BL Line (Diffused Lighting)
Manufacturer: CCS Inc.
Model: LNSD-1700BL
Feature
- This Light Unit emits blue light and measures W 1730 x D 30 x H 32.5 mm.
- The light-emitting surface measures 1700 x 15 mm.
- High luminance type.
- Note 1: There are two connectors only for the Light Unit whose length of the emitting surface is more than 1,200 mm.
- Note 2: There are reinforcing metal fittings only for the Light Unit whose length of the emitting surface is more than 1,600 mm.
Specifications
| LED color | Blue |
|---|---|
| Peak wavelength | 470 nm typ. |
| Dimensions | W 1,730 x D 30 x H 32.5 mm |
| Input voltage | 24VDC |
| Power consumption | 171 W max. |
| Polarity & signal | 1: (+), 2: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | ELP-02V x 2 |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 50°C, Humidity: 20 to 85%RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 2,300 g max. |
| Accessories | User Manual |

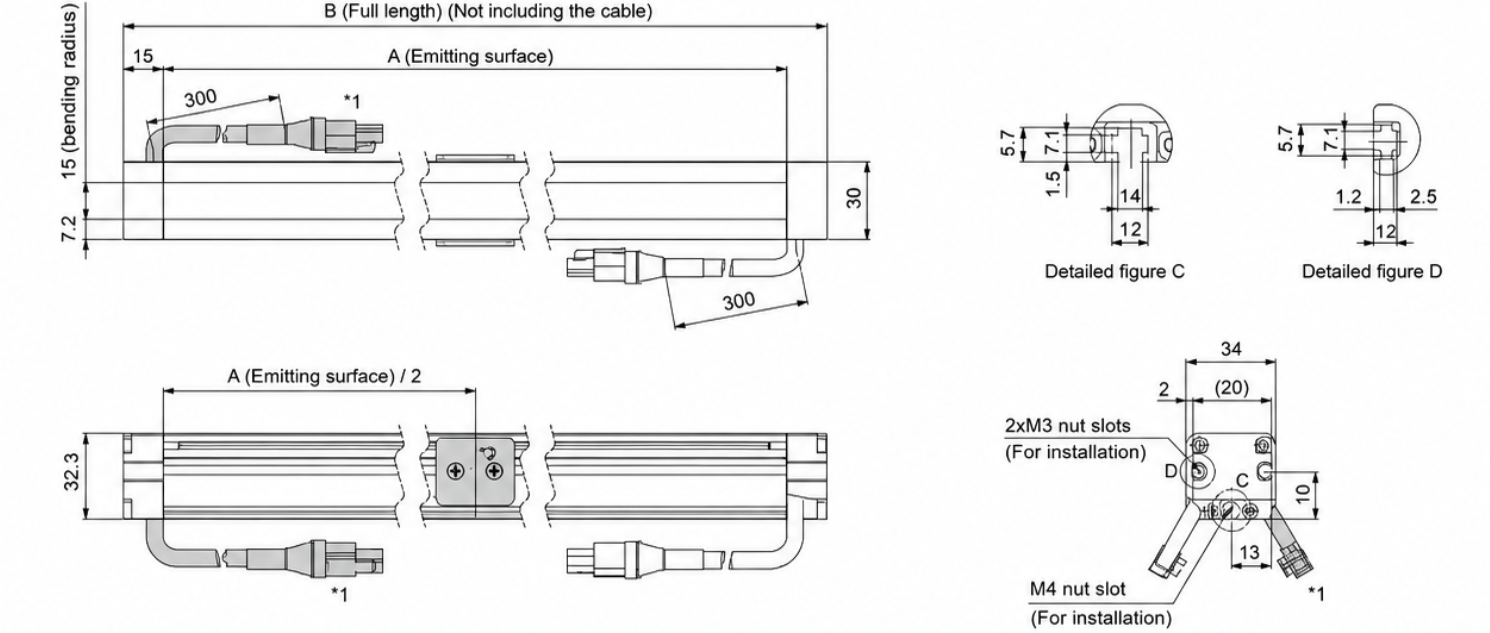

Dimensions (mm)
| Model Name | A (Emitting surface) | B (Full length) |
|---|---|---|
| LNSD-100SW/RD/BL | 100 | 150 |
| LNSD-200SW/RD/BL | 200 | 250 |
| LNSD-300SW/RD/BL | 300 | 350 |
| LNSD-400SW/RD/BL | 400 | 450 |
| LNSD-500SW/RD/BL | 500 | 550 |
| LNSD-600SW/RD/BL | 600 | 650 |
| LNSD-700SW/RD/BL | 700 | 750 |
| LNSD-800SW/RD/BL | 800 | 850 |
| LNSD-900SW/RD/BL | 900 | 950 |
| LNSD-1000SW/RD/BL | 1000 | 1050 |
| LNSD-1100SW/RD/BL | 1100 | 1150 |
| LNSD-1200SW/RD/BL | 1200 | 1250 |
| LNSD-1300SW/RD/BL | 1300 | 1350 |
| LNSD-1400SW/RD/BL | 1400 | 1450 |
| LNSD-1500SW/RD/BL | 1500 | 1550 |
| Model Name | A (Emitting surface) | B (Full length) |
|---|---|---|
| LNSD-1600SW/RD/BL | 1600 | 1650 |
| LNSD-1700SW/RD/BL | 1700 | 1750 |
| LNSD-1800SW/RD/BL | 1800 | 1850 |
| LNSD-1900SW/RD/BL | 1900 | 1950 |
| LNSD-2000SW/RD/BL | 2000 | 2050 |
| LNSD-2100SW/RD/BL | 2100 | 2150 |
| LNSD-2200SW/RD/BL | 2200 | 2250 |
| LNSD-2300SW/RD/BL | 2300 | 2350 |
| LNSD-2400SW/RD/BL | 2400 | 2450 |
| LNSD-2500SW/RD/BL | 2500 | 2550 |
| LNSD-2600SW/RD/BL | 2600 | 2650 |
| LNSD-2700SW/RD/BL | 2700 | 2750 |
| LNSD-2800SW/RD/BL | 2800 | 2850 |
| LNSD-2900SW/RD/BL | 2900 | 2950 |
| LNSD-3000SW/RD/BL | 3000 | 3050 |
