Manufacturer: CCS Inc.
Model: LNSD-1700RD

Features

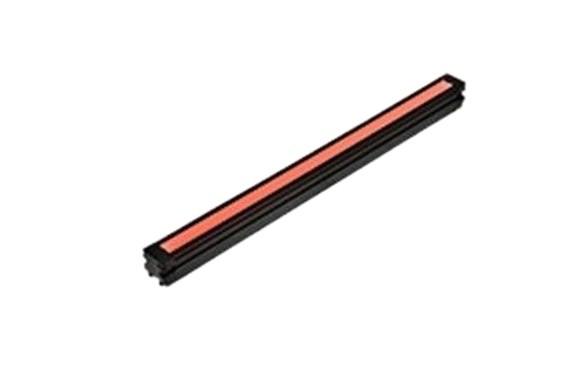

• This Light Unit emits red light and measures W 1730 x D 30 x H 32.5 mm.
• The light-emitting surface measures 1700 x 15 mm.
• High luminance type.

Note 1: There are two connectors only for the Light Unit whose length of the emitting surface is more than 1,200 mm.
Note 2: There are reinforcing metal fittings only for the Light Unit whose length of the emitting surface is more than 1,600 mm.

Specifications

LED color	Red
Peak wavelength	631 nm typ.
Dimensions	W 1,730 x D 30 x H 32.5 mm
Input voltage	24VDC
Power consumption	172 W max.
Polarity & signal	1: (+), 2: (-)
Cable length	300 mm
Case material	Aluminum alloy, resin
Input connector	ELP-02V x 2
Conformed standards	CE, UKCA, RoHS, IEC 62471（Exempt）
Operating temperature and humidity	Temperature: 0 to 50°C, Humidity: 20 to 85%RH (with no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Natural air cooling
Weight	2,300 g max.
Accessories	User Manual

Dimensions (mm)
