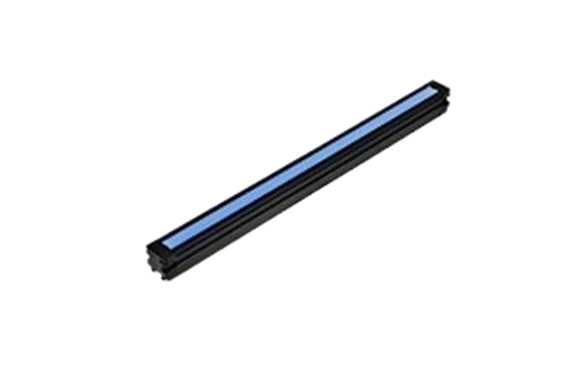

CCS LNSD-1900BL-HU Line (Diffused Lighting)
Manufacturer: CCS Inc.
Model: LNSD-1900BL-HU
Feature
- This Light Unit emits blue light and measures W 1930 x D 30 x H 32.5 mm.
- The light-emitting surface measures 1900 x 15 mm.
- High uniformity type.
- Note 1: There are two connectors only for the Light Unit whose length of the emitting surface is more than 1,200 mm.
- Note 2: There are reinforcing metal fittings only for the Light Unit whose length of the emitting surface is more than 1,600 mm.
Specifications
| LED color | Blue |
|---|---|
| Peak wavelength | 470 nm typ. |
| Dimensions | W 1,930 x D 30 x H 32.5 mm |
| Input voltage | 24VDC |
| Power consumption | 192 W max. |
| Polarity & signal | 1: (+), 2: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | ELP-02V x 2 |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 50°C, Humidity: 20 to 85%RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 2,570 g max. |
| Accessories | User Manual |
Dimensions (mm)
| MARK | Service |
|---|---|
| N1 | Inlet |
| N2 | Outlet |
| N3 | Drain |
| N4 | Vent |
| N5 | For PG. |
| N6 | For PG. |
| N7 | Drain |
| NO. | NAME |
|---|---|
| 1 | Body pipe |
| 2 | Body flange |
| 3 | Cover flange |
| 4 | Gasket |
| 5 | Bolt / nut |
| 6 | Line pipe |
| 7 | Line flange |
| 8 | Bottom plate |
| 9 | Element |
| 10 | Name plate |
| 11 | Handle |
| 12 | Drain / vent boss |
| 13 | Drain / vent plug |
| 14 | Leg |
| 15 | Scraper |
