Manufacturer: CCS Inc.
Model: LNSD-400BL-HU

Features

• This Light Unit emits blue light and measures W 430 x D 30 x H 32.5 mm.
• The light-emitting surface measures 400 x 15 mm.
• High uniformity type.

Note 1: There are two connectors only for the Light Unit whose length of the emitting surface is more than 1,200 mm.
Note 2: There are reinforcing metal fittings only for the Light Unit whose length of the emitting surface is more than 1,600 mm.

Specifications

LED color	Blue
Peak wavelength	470 nm typ.
Dimensions	W 430 x D 30 x H 32.5 mm
Input voltage	24VDC
Power consumption	41 W max.
Polarity & signal	1: (+), 2: (-)
Cable length	300 mm
Case material	Aluminum alloy, resin
Input connector	ELP-02V
Conformed standards	CE, UKCA, RoHS, IEC 62471（Low risk）
Operating temperature and humidity	Temperature: 0 to 50°C, Humidity: 20 to 85%RH (with no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Natural air cooling
Weight	590 g max.
Accessories	User Manual

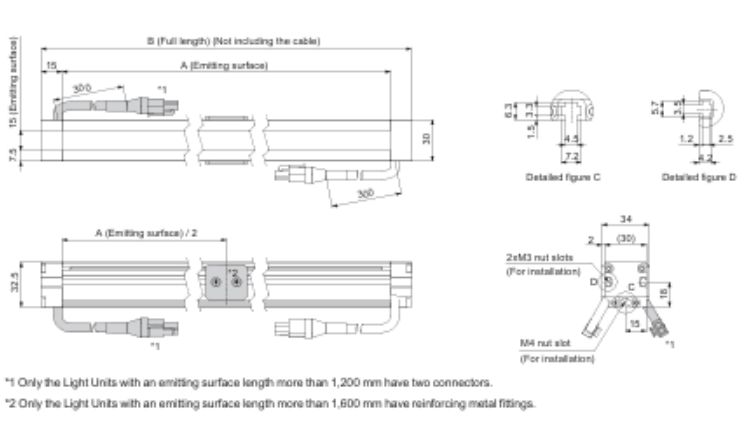

Dimensions (mm)

Model name	A (Emitting surface)	B (Full length)	Model name	A (Emitting surface)	B (Full length)
LNSD-100SW/RD/BL	100	130	LNSD-1600SW/RD/BL	1,600	1,630
LNSD-200SW/RD/BL	200	230	LNSD-1700SW/RD/BL	1,700	1,730
LNSD-300SW/RD/BL	300	330	LNSD-1800SW/RD/BL	1,800	1,830
LNSD-400SW/RD/BL	400	430	LNSD-1900SW/RD/BL	1,900	1,930
LNSD-500SW/RD/BL	500	530	LNSD-2000SW/RD/BL	2,000	2,030
LNSD-600SW/RD/BL	600	630	LNSD-2100SW/RD/BL	2,100	2,130
LNSD-700SW/RD/BL	700	730	LNSD-2200SW/RD/BL	2,200	2,230
LNSD-800SW/RD/BL	800	830	LNSD-2300SW/RD/BL	2,300	2,330
LNSD-900SW/RD/BL	900	930	LNSD-2400SW/RD/BL	2,400	2,430
LNSD-1000SW/RD/BL	1,000	1,030	LNSD-2500SW/RD/BL	2,500	2,530
LNSD-1100SW/RD/BL	1,100	1,130	LNSD-2600SW/RD/BL	2,600	2,630
LNSD-1200SW/RD/BL	1,200	1,230	LNSD-2700SW/RD/BL	2,700	2,730
LNSD-1300SW/RD/BL	1,300	1,330	LNSD-2800SW/RD/BL	2,800	2,830
LNSD-1400SW/RD/BL	1,400	1,430	LNSD-2900SW/RD/BL	2,900	2,930
LNSD-1500SW/RD/BL	1,500	1,530	LNSD-3000SW/RD/BL	3,000	3,030
