Manufacturer: CCS Inc.
Model: LNSD-800SW(A)

Features

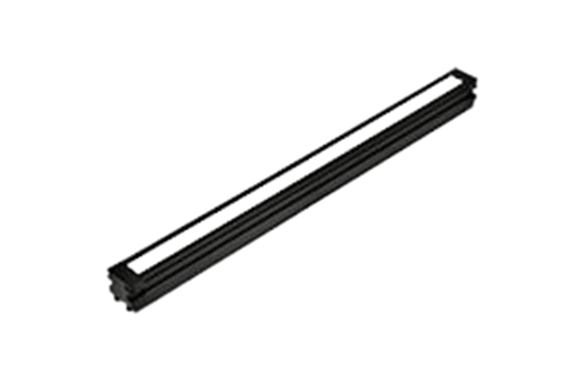

• This Light Unit emits white light and measures W 830 x D 30 x H 32.5 mm.
• The light-emitting surface measures 800 x 15 mm.
• High luminance type.

Note 1: There are two connectors only for the Light Unit whose length of the emitting surface is more than 1,200 mm.
Note 2: There are reinforcing metal fittings only for the Light Unit whose length of the emitting surface is more than 1,600 mm.

Specifications

LED color	White
Correlated color temperature	6,000 K typ.
Dimensions	W 830 x D 30 x H 32.5 mm
Input voltage	24VDC
Power consumption	81 W max.
Polarity & signal	1: (+), 2: (-)
Cable length	300 mm
Case material	Aluminum alloy, resin
Input connector	ELP-02V
Conformed standards	CE, UKCA, RoHS, IEC 62471（Low risk）
Operating temperature and humidity	Temperature: 0 to 50°C, Humidity: 20 to 85%RH (with no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Natural air cooling
Weight	1,120 g max.
Accessories	User Manual

Dimensions (mm)

Standard products	Model name	A (Emitting surface)	B (Full length)	Special orders	Model name	A (Emitting surface)	B (Full length)
	LNLP-100SW	100	161		LNLP-1600SW	1,600	1,706
	LNLP-200SW	200	261		LNLP-1700SW	1,700	1,806
	LNLP-300SW	300	361		LNLP-1800SW	1,800	1,906
	LNLP-400SW	400	461		LNLP-1900SW	1,900	2,006
	LNLP-500SW	500	561		LNLP-2000SW	2,000	2,106
	LNLP-600SW	600	661		LNLP-2100SW	2,100	2,206
	LNLP-700SW	700	761		LNLP-2200SW	2,200	2,306
	LNLP-800SW	800	861		LNLP-2300SW	2,300	2,406
	LNLP-900SW	900	961		LNLP-2400SW	2,400	2,506
	LNLP-1000SW	1,000	1,061		LNLP-2500SW	2,500	2,606
Special orders	LNLP-1100SW	1,100	1,161		LNLP-2600SW	2,600	2,706
	LNLP-1200SW	1,200	1,261		LNLP-2700SW	2,700	2,806
	LNLP-1300SW	1,300	1,361		LNLP-2800SW	2,800	2,906
	LNLP-1400SW	1,400	1,461		LNLP-2900SW	2,900	3,006
	LNLP-1500SW	1,500	1,561	Special orders	LNLP-3000SW	3,000	3,106
