CCS Inc.
CCS LNSP2-300SW Line (Convergent Lighting)
Manufacturer: CCS Inc.
Model: LNSP2-300SW
Features

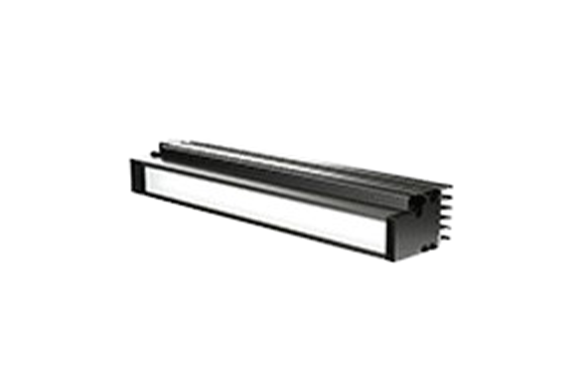

- This Line Light Unit emits white light and measures 326 x 42 x 70 mm (width x depth x height).
- The light-emitting surface measures 300 x 25 mm.
- Standard type (a diffusion sheet is included).
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 6,600 K typ. |
| Dimensions | W 326 mm x D 42 mm x H 70 mm |
| Input voltage | 24VDC |
| Power consumption | 60 W max. |
| Polarity & signal | 1: (+), 2: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | ELP-02V |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 1,000 g max. |
| Accessories | User Manual |
Dimensions (mm)
