CCS Inc.

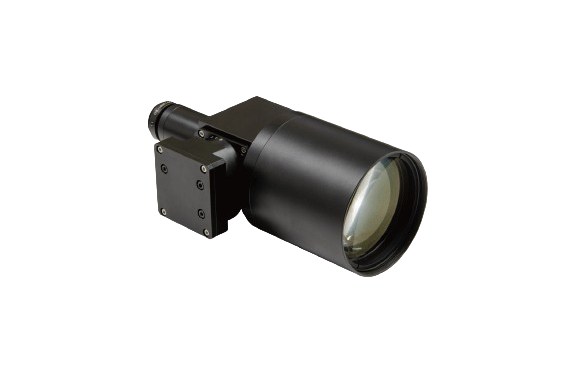

CCS MSU-47X34SW+TH2SP Coaxial
Manufacturer: CCS Inc.
Model: MSU-47X34SW+TH2SP
Features
- Lens-integrated parallelism-variable coaxial light MSU-47X34SW+TH2SP (custom order).
- Integrated lens for easy light source and camera optical axis adjustment.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 5,800 K |
| Input voltage | 24 VDC |
| Power consumption | 2.9 Ｗ max. |
| Cable length | Approx. 0.3 m |
| Input connector | SMR-03V-B |
| Conformed standards | RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 80% RH (with no condensation) |
| Storage temperature and humidity | Temperature: -10 to 50°C, Humidity: 20 to 80% RH (with no condensation) |
| Cooling method | Natural air cooling |
| Weight | Approx. 1.1 kg |
| Material | Aluminum alloy, Glass |
| Notes | Applicable: Image Size*10.3 x 14.1 mm (diagonal 17.6 mm, 1.1 type) *As the image size is in inches, the field of view is an approximation. |

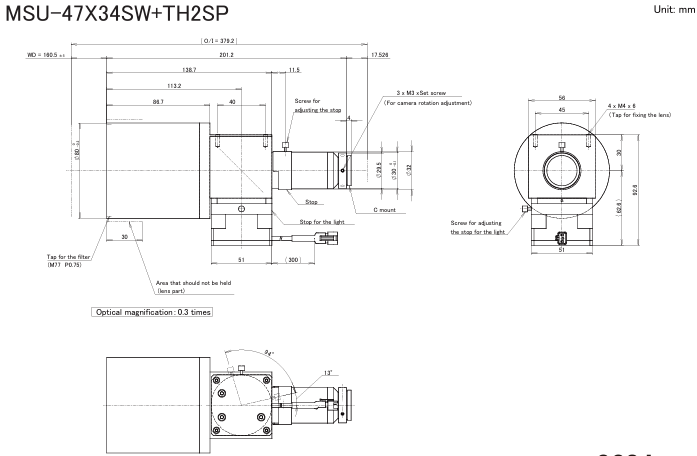

Dimensions (mm)
