CCS Inc.

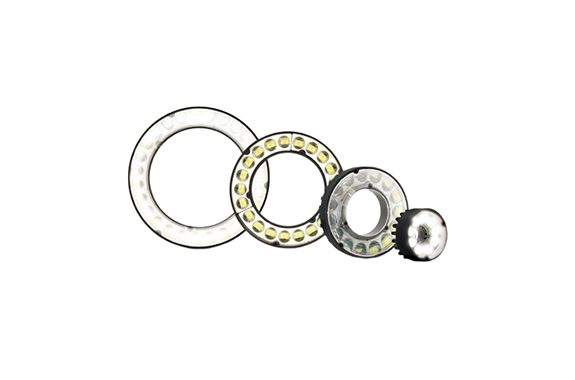

CCS OPR-SF70-43W Ring
Manufacturer: CCS Inc.
Model: OPR-SF70-43W
Features
- This Light Unit emits white light and has an outer diameter of 70 mm, an inner diameter of 43 mm, and a height of 18 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 6,000 K |
| Dimensions | Outer diameter 70 mm, Inner diameter 43 mm, Height 18 mm |
| Input voltage | 12 VDC |
| Power consumption | 19.4 W |
| Vibration resistance | 10 to 55 Hz; amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions |
| Shock resistance | Approximately 10 G, 3 times in each of the X, Y, and Z directions |
| Conformed standards | EMC (2014/30/EU), RoHS (2011/65/EU, MIIT Order No.32) / EN 61326-1:2013 |
| Operating temperature and humidity | 0 to 40°C/35 to 85% RH (no condensation) |
| Storage temperature and humidity | -20 to 70°C/35 to 95% RH (no condensation) |
| Weight | 75 g |
| Material | Housing: ADC12 and PC, Lens: PC (UV-resistant) and PMMA |
Dimensions (mm)
