CCS Inc.

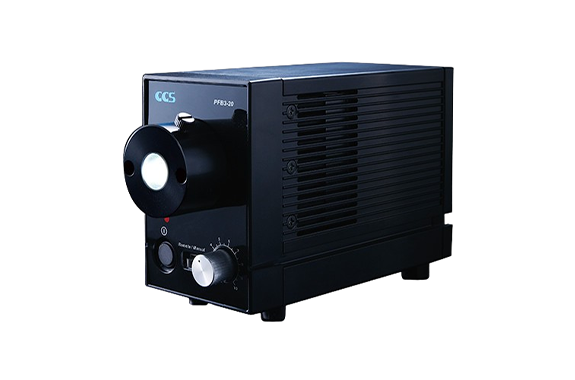

CCS PFB3-20SW-JT-VL(A) Light Source Units
Manufacturer: CCS Inc.
Model: PFB3-20SW-JT-VL(A)
Features
- LED light source PFB3-20SW-JT-VL(A). Standard type without external control.
- It measures 70 x 150 x 100 mm (width x depth x height). (Not including parts such as connectors, knobs, and feet.)
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 5,700 K typ. |
| Dimensions | W 70 mm x D 150 mm x H 100 mm (not including connectors, knobs, legs, and other projections) Please refer to the “Dimensions” tab for light guide adapter dimensions chart. |
| Number of channels | 1 channel |
| Drive method | Constant-current system |
| Lighting method | Continuous lighting |
| Intensity control method | Variable-current control |
| Intensity control | Continuous control using the intensity control knob Note: The light intensity of this product is very faint when the intensity control knob is set to the minimum intensity. |
Dimensions (mm)
