CCS Inc.

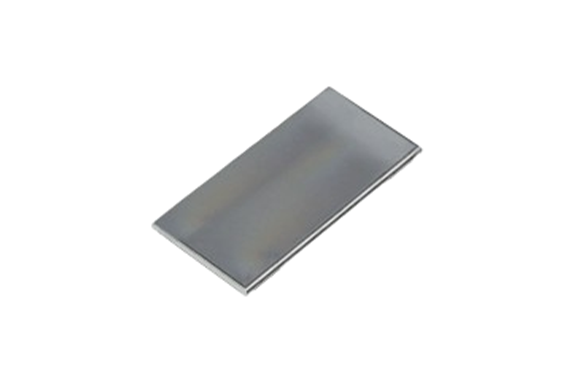

CCS PL-LDL-PF-152X18-VE Polarizing Plates [For LDL-PF Series]
Manufacturer: CCS Inc.
Model: PL-LDL-PF-152X18-VE
Features
- For the LDL-PF-152X18-series High Power Strobe Bar Lights.
- Bar type polarizing plate.
- Use the polarizing plate together with a plarizing filter to eliminate the surface reflection of the workpiece.
-HO: Light is polarized parallel to the longer edge of the plate.
-VE: Light is polarized parallel to the shorter edge of the plate.
Specifications
| Dimensions | W 158 mm x D 22 mm x H 1.7 mm |
|---|---|
| Heat resistant temperature | 80 ℃ |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Accessories | Operation Guide |
| Caution | Heat may cause deformation or discoloring depending on the use environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections. |
| Notes | Applicable products: LDL-PF-152X18 |
Dimensions (mm)
