CCS Inc.

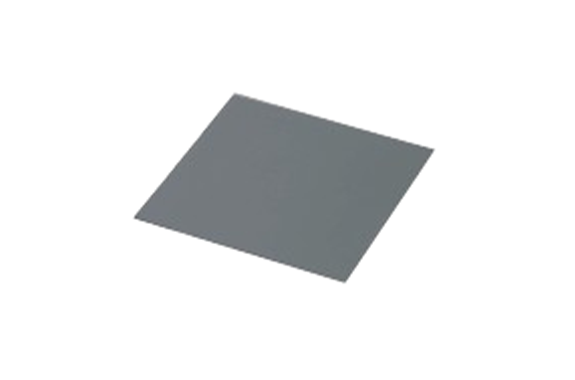

CCS PL-LFV2-50 Polarizing Plates [For Coaxial Lights]
Manufacturer: CCS Inc.
Model: PL-LFV2-50
Features
- For the LFV2-50-series Coaxial Lights.
- Square type polarizing plate.
- Use the polarizing plate together with a plarizing filter to eliminate the surface reflection of the workpiece.
Specifications
| Dimensions | W 54 mm x D 52 mm x H 0.8 mm |
|---|---|
| Transmission | 0.43 |
| Heat resistant temperature | 60℃ |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 5 g max. |
| Accessories | Operation Guide |
| Caution | Heat may cause deformation or discoloring depending on the use environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections. |
| Notes | Applicable products: LFV2-50 |
Dimensions (mm)
