CCS Inc.

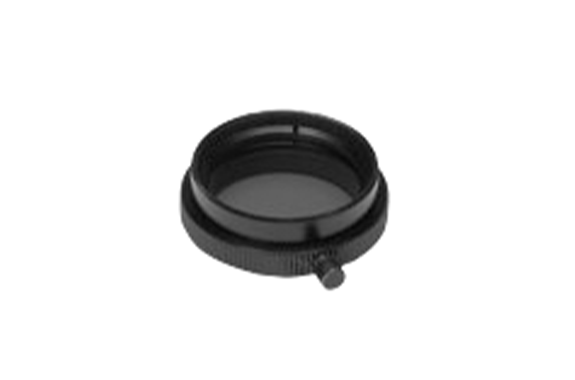

CCS PL2-43-NL Filters
Manufacturer: CCS Inc.
Model: PL2-43-NL
Features
- Polarizing plate installed on the lens filter thread part of lens.
- Eliminates surface glare on the workpiece when used together with a polarizing plate installed on the Light Unit.
- Compatible with a lens filter thread diameter of M43 x P0.75.
- Has a locking mechanism.
Specifications
| Dimensions | Outer diameter 45 mm, Inner diameter 38.9 mm, Height 10 mm |
|---|---|
| Screw hole diam. x Screw pitch | M43 x P0.75 |
| Useful range | 400 to 700 nm |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Notes | Use this filter together with a Polarizing Plate mounted on the Light Unit. This filter has a locking mechanism. |
Dimensions (mm)
