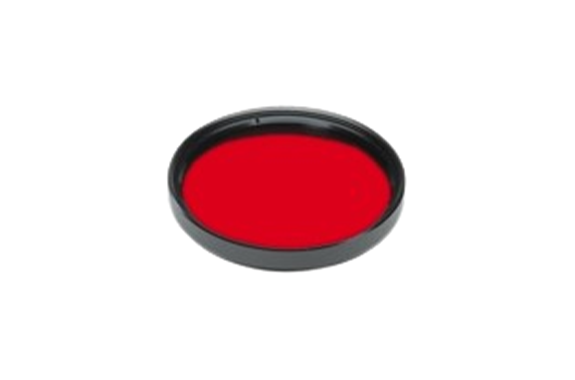

CCS R60-46 Filters
Manufacturer: CCS Inc.
Model: R60-46
Features
- Sharp-cut filter installed in front of a lens.
- Blocks the light of 600 nm or shorter and transmits the longer wavelengths.
- Compatible with a lens filter thread diameter of M46.0 x P0.75.
Specifications
| Dimensions | Outer diameter 48 mm, Inner diameter 41.5 mm, Height 7 mm |
|---|---|
| Screw hole diam. x Screw pitch | M46.0 x P0.75 |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 15 g max. |
Dimensions (mm)
