CCS TH2-63X60RD-IU Intensity Control Units [Light Units with Intensity Control Unit]
Manufacturer: CCS Inc.
Model: TH2-63X60RD-IU
Features

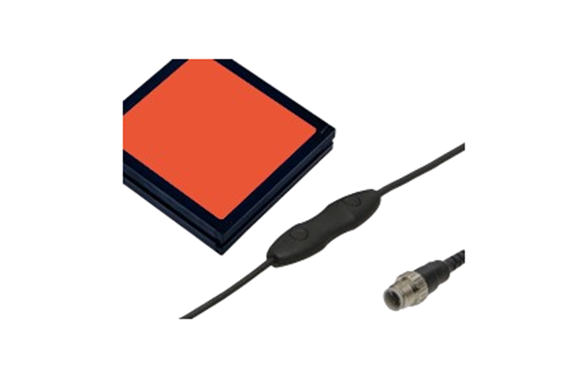

- This Light Unit with lntensity Control Unit emits red light and measures 75 x 72 x 15 mm (width x depth x height).
- The light-emitting surface measures 63 x 60 mm.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 635 nm typ. |
| Dimensions | W 75 mm x D 72 mm x H 15 mm |
| Input voltage | 24VDC |
| Power consumption | 10.4 W max. |
| Polarity & signal | 1 : 24 VDC / 2 : NC / 3 : COMMON GND / 4 : ON/OFF input (+ 24 V) |
| Cable length | 670 mm (including the Intensity Control Unit) |
| Case material | Aluminum alloy, resin |
| Input connector | M12 (4 pins, plug) |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 140 g max. |
| Accessories | User Manual |
