Chuhatsu Sales Co.

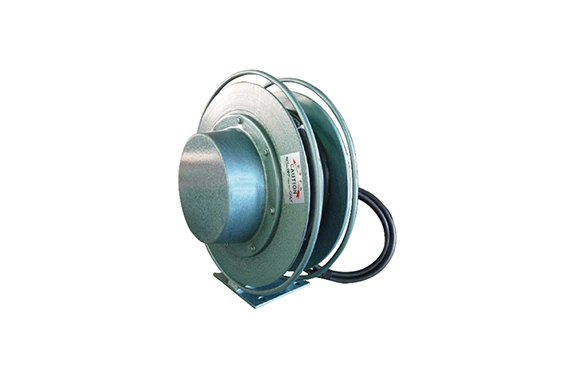

Chuhatsu Cable Reel CSN type
Manufacturer: Chuhatsu Sales Co., Ltd.
Features
●Contributes to efficient space creation
●A wide lineup to meet all your needs
●Ideal for powering continuously operating mobile cart cranes
Specifications
| Model | Maximum number of poles (P) | Dimensions (mm) | Installation location | Mass (approx. kg) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | d | |||||||
| 3P | 6P | 12P | 20P | |||||||||||||
| CSN-10 | 6 | 78 | 280 | 80 | 130 | 120 | 150 | 186 | 246 | – | – | 316 | 330 | 12 | floor | 9.0 |
| CSN-11 | 12 | 87 | 360 | 90 | 140 | 120 | 150 | 200 | 240 | 373 | – | 395 | 412 | 12 | floor | 13.0 |
| CSN-12 | — | 99 | 420 | 130 | 180 | 140 | 180 | 228 | 278 | 361 | – | 460 | 475 | 13 | floor | 17.0 |
| CSN-13 | — | 103 | 495 | 130 | 180 | 140 | 180 | 238 | 288 | 371 | – | 535 | 550 | 13 | floor | 25.0 |
| CSN-21 | — | 126 | 420 | 180 | 220 | 160 | 200 | 304 | 387 | 437 | – | 460 | 500 | 13 | floor | 35.0 |
| CSN-22 | 3(4) | 120 | 480 | 180 | 180 | 140 | 180 | 292 | – | – | – | 580 | 590 | 13 | floor | 35.0 |
| CSN-23 | 20 | 133 | 450 | 200 | 240 | 190 | 200 | 329 | 412 | 462 | 545 | 490 | 525 | 14 | floor | 46.0 |
| CSN-24 | — | 143 | 490 | 220 | 260 | 180 | 220 | 338 | 421 | 471 | 554 | 535 | 572 | 14 | floor | 50.0 |
| CSN-25 | — | 193 | 550 | 280 | 320 | 210 | 250 | 399 | 482 | 532 | 665 | 595 | 642 | 18 | floor | 72.0 |
