Manufacturer: Coco Research Co., Ltd

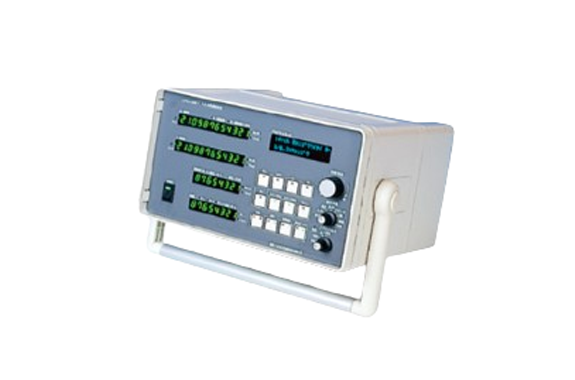

Model: CRM-281

Features

This is a transmission deviation meter that takes two channels of pulse signals, such as A/B phase signals or UP/DOWN signals from a pulse-output type incremental encoder, as input and calculates the integrated value of each channel and the integrated difference between the two channels.
It also simultaneously calculates the speed of each channel A and channel B and the speed difference between them.
In addition to angle and rotation speed display, it can also display pulse count and frequency.
The analog output of the calculation is updated every 100 μs, and all 8 channels are updated simultaneously, so it is possible to analyze integrated value, integrated difference, speed, and speed difference on the same time axis.
