Cosmos Bead SM/SML Type Greaseless Flow Rate Control Stop Valve
Manufacturer: Cosmos Bead
Model: SM/SML Type
Features

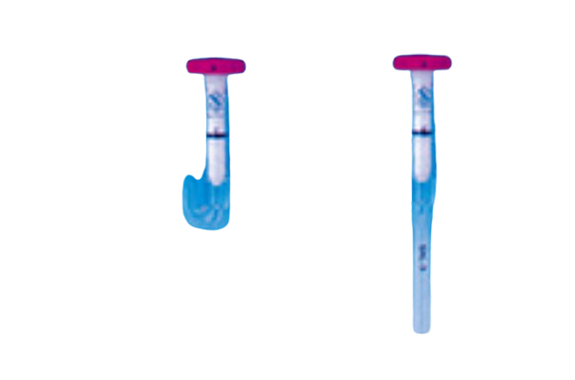

This needle valve combines glass and PTFE, offering resistance to vacuum, pressure, and chemicals. In addition, its simple construction uses very few components, making cleaning and maintenance easy. Parts are interchangeable. The SM type is a straight type, and the SML type is an angle type. All-fluoro rubber and all-PTFE O-ring specifications are available as special orders upon request.
Specifications
| code | Model | Branch outer diameter (mm) | Orifice (mm) | Air (ℓ/min) | Water (ℓ/min) |
| 2067-01 | SM-1 | 6 | 1.5 | 15 | 0.6 |
| 2067-02 | SML-1 | ||||
| 2067-03 | SM-2 | 8 | 3 | 50 | 2 |
| 2067-04 | SML-2 | ||||
| 2067-05 | SM-3 | 10 | 4.3 | 100 | 4 |
| 2067-06 | SML-3 | ||||
| 2067-07 | SM-4 | 12 | 5.5 | 150 | 7 |
| 2067-08 | SML-4 | ||||
| 2067-09 | SM-5 | 15 | 7 | 230 | 10 |
| 2067-10 | SML-5 |
