Daido Machines

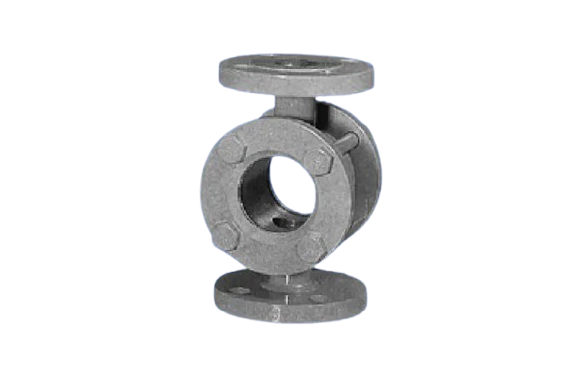

Daido 23-TYPE~3″/80A Flange
Manufacturer: DAIDO MACHINES CO., LTD
Features
- 23-type sight glasses are the most typical and commonly used sight glasses.
- Available materials are carbon steel, stainless steel any other unique materials.
Specifications
| End Connection | Design | Internal Structure/ Function | Material |
|---|---|---|---|
| Flanged | Welded | Flow gauge Float Flapper Nozzle Lantern Jacket | Carbon Steel (SGP, STPG370, etc) Stainless Steel (304, 304L, 316, 316L) Lining (Glass, Rubber, Teflon Coating) Special Metals (LF-2, Titanium, Hastelloy, etc) |
| Machined | Flow gauge Float Flapper | Forged (S25C, A105, SF440A, SUS) Special Metals (Titanium, Hastelloy, etc) | |
| Screwed | Welded | Flow gauge Float Flapper Nozzle | Carbon Steel (SGP, STPG370, etc) Stainless Steel (304, 304L, 316, 316L) Special Metals (LF-2, Titanium, Hastelloy, etc) |
| Machined | Flow gauge Float Flapper | Forged (S25C, A105, SF440A, SUS) Special Metals (Titanium, Hastelloy, etc) | |
| Socket Weld | Welded | Flow gauge Float Flapper | Carbon Steel (SGP, STPG370, etc) Stainless Steel (304, 304L, 316, 316L) Special Metals (LF-2, Titanium, Hastelloy, etc) |
| Machined | Forged (S25C, A105, SF440A, SUS) Special Metals (Titanium, Hastelloy, etc) |

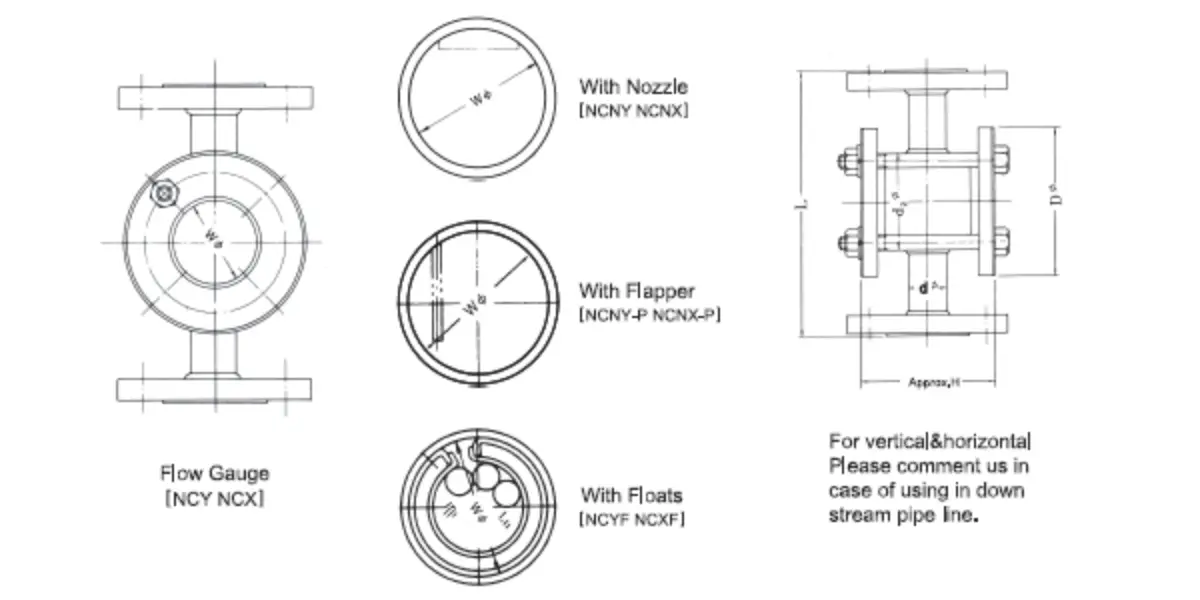

Dimensions (mm)
