Daido Machines

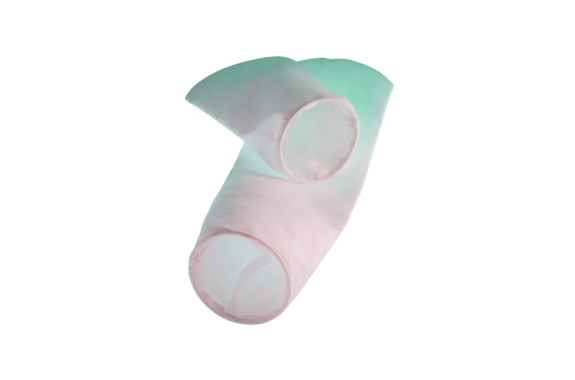

Daido Bag Filter DFBG
Manufacturer: DAIDO MACHINES CO., LTD
Model: DFBG
Feature
- Bag Filter
- DFBG is preprocessing filter before cartridge filter.
- Filter Medias; polypropylene, polyester, and nylon, a re available.
Specifications
| Materials of Composition | Media / P: Polypropylene, E: Polyester, N: Nylon, S: SUS304 |
| Filtration Precision (Nominal microns) | 1, 5, 10, 25, 50, 100, 200 |
| Dimensions | Outside diameter: 18cm Length: 43cm (Short type), 81cm (Long type) |
| Maximum Operating Temperature | Polypropylene: 90°C, Polyester: 150°C |
| Applicable Fluids | Water, Drinking water, Foodstuff, Chemicals, Auto paint, Paint, Drainage, etc |

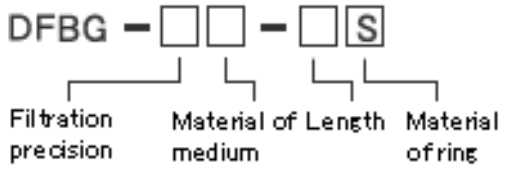

| Model Code |  |
