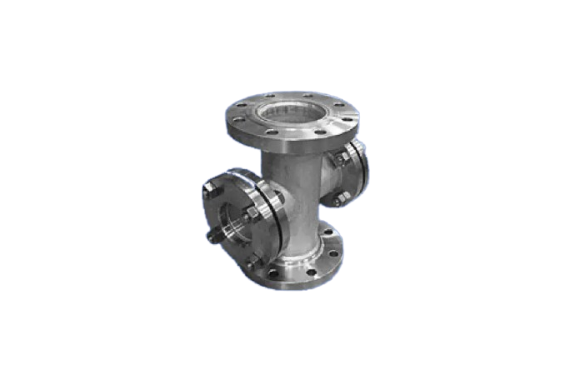

Daido Cross Type Two (2)
Manufacturer: DAIDO MACHINES CO., LTD
Model: Cross Type 2
Feature
- Cross type sight glasses are typical and commonly used sight glasses.
- Compared to 23-type, cross type sight glasses are more suitable for high-pressure lines.
- Available materials are carbon steel, stainless steel any other unique materials.
Specifications
| NOMINAL DIA | WINDOW DIA (Wφ) | PIPE & BODY DIA (D1φ) | PIPE & BODY DIA (D2φ) | TYPE: SN-OY,SN-OV (JIS10K, ASME150Lb) FACE TO FACE (L) | HEIGHT (APPROX.H) | WINDOW FLANGE (D1φ) |
| 100 | 50 | 100 | 50 | 320 | 287 | 140 |
| 125 | 65 | 125 | 65 | 360 | 326 | 155 |
| 150 | 65 | 150 | 65 | 380 | 346 | 155 |
| 200 | 102 | 200 | 100 | 420 | 410 | 195 |
| 250 | 102 | 250 | 100 | 480 | 470 | 195 |
| 300 | 102 | 300 | 100 | 500 | 525 | 195 |
| 350 | 102 | 350 | 100 | 520 | 560 | 195 |
