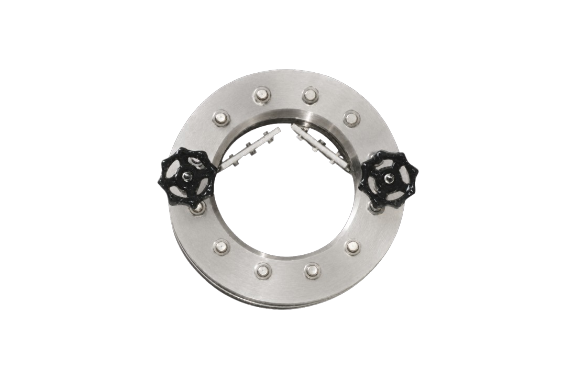

Daido G2-A Type Weld On Gauge With Wiper
Manufacturer: DAIDO MACHINES CO., LTD
Model: G2-A Type

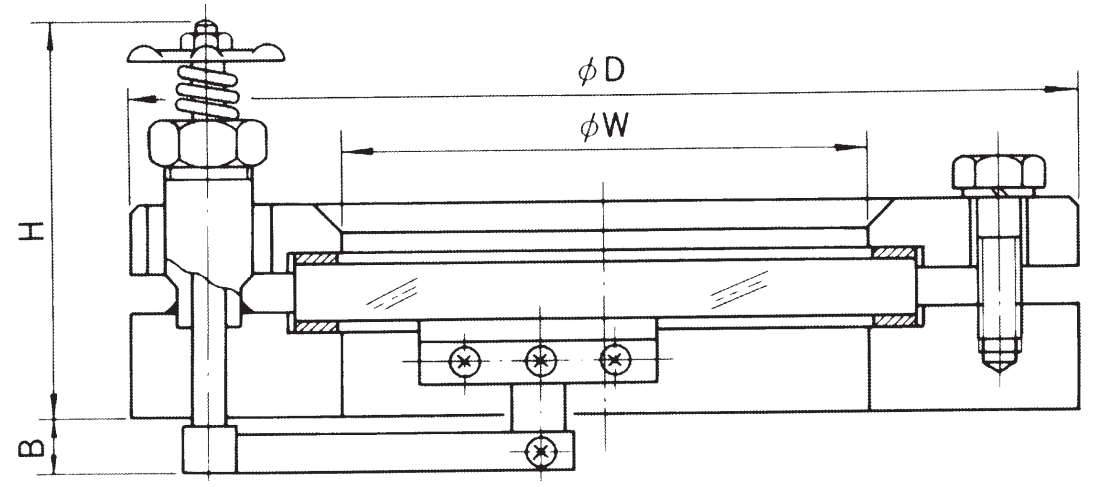

Dimensions
| TYPE | ΦD | ΦW | H | B |
| G2-A-W100 | 195 | 102 | 130 | 20 |
| G2-A-W140 | 250 | 130 | 135 | 20 |
| G2-A-W170 | 280 | 160 | 140 | 20 |
| G2-A-W220 | 330 | 200 | 140 | 25 |
| G2-A-W270 | 400 | 250 | 170 | 25 |
| G2-A-W320 | 445 | 300 | 175 | 25 |
