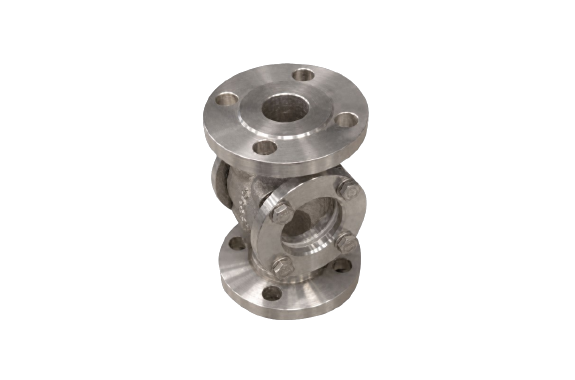

Daido Sight Flow Type Flanged
Manufacturer: DAIDO MACHINES CO., LTD
Model: Sight Flow Type Flanged

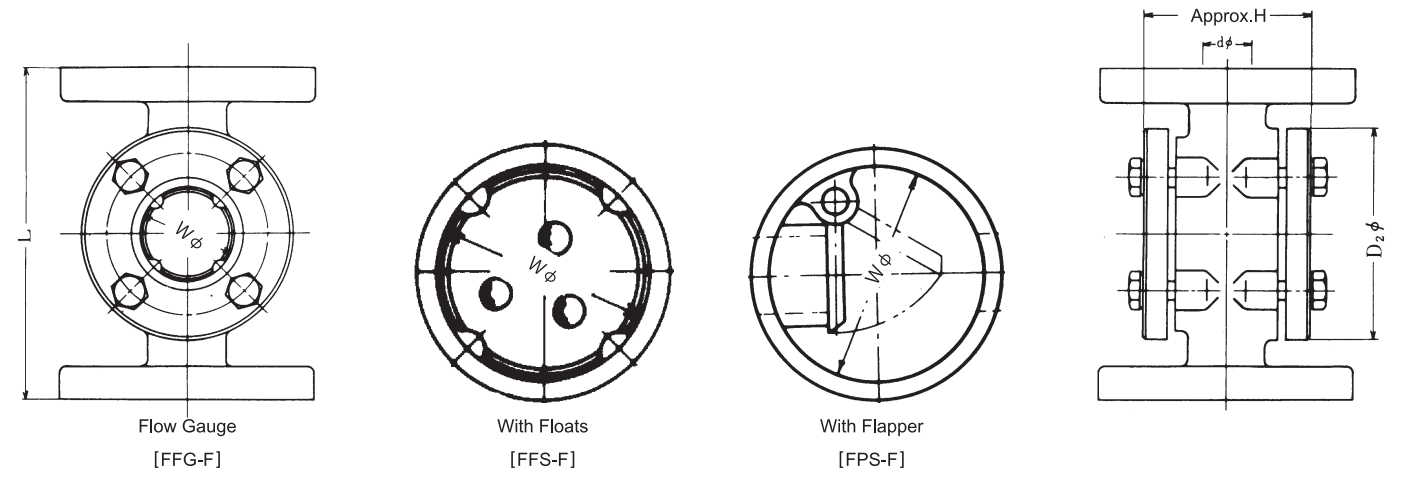

Specifications
| NOMINAL DIA | WINDOW DIA Wφ | WINDOW FLANGE D2φ | FACE TO FACE L | HEIGHT APPROX.H | |
| 15A | 1/2″ | 40 | 90 | 140 | 74 |
| 20A | 3/4″ | 40 | 90 | 150 | 74 |
| 25A | 1″ | 50 | 100 | 160 | 82 |
| 40A | 1-1/2″ | 60 | 110 | 190 | 102 |
| 50A | 2″ | 75 | 130 | 215 | 121 |
