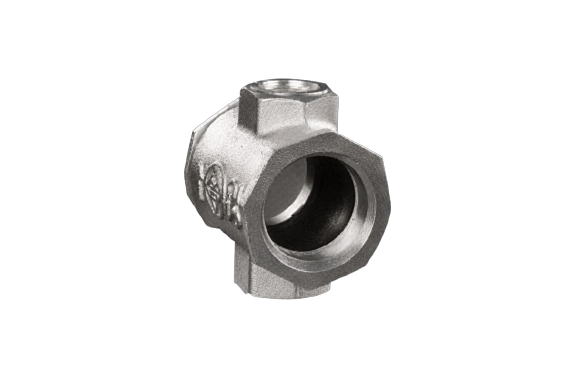

Daido Sight Flow Type Screwed
Manufacturer: DAIDO MACHINES CO., LTD
Model: Sight Flow Type Screwed
Feature
- Machined Sight Glass provides superior cost performance and quick delivery.

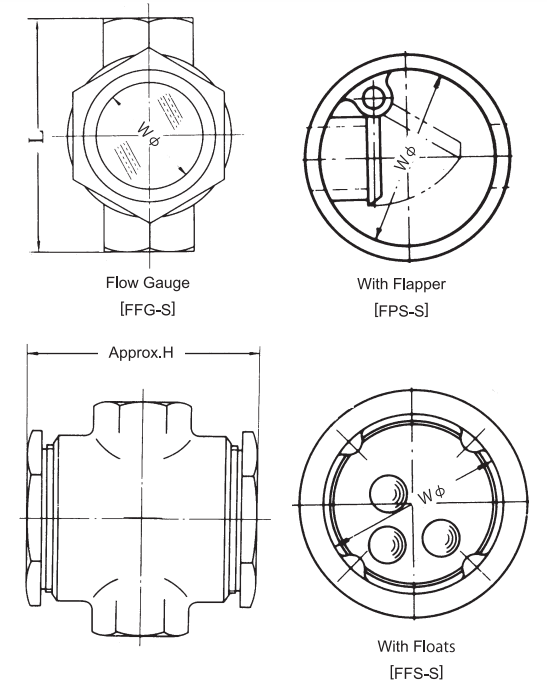

Specifications
| NOMINAL DIA | TYPE | WINDOW DIA | FACE TO FACE | HEIGHT |
| 1OA 3/8″ | FC: FFG,FPS,FFS-10S BC: BFG,BPS,BFS-10S | 35 | 80 | 80 |
| 15 1/2″ | FC: FFG,FPS,FFS-15S BC: BFG,BPS,BFS-15S | 35 | 80 | 80 |
| 20 3/4″ | FC: FFG,FPS,FFS-20S BC: BFG,BPS,BFS-20S | 45 | 95 | 90 |
| 25 1″ | FC: FFG,FPS,FFS-25S BC: BFG,BPS,BFS-25S | 55 | 110 | 105 |
| 32 1 1/4″ | FC: FFG,FPS,FFS-32S BC: BFG,BPS,BFS-32S | 65 | 135 | 125 |
| 40 1 1/2″ | FC: FFG,FPS,FFS-40S BC: BFG,BPS,BFS-40S | 65 | 135 | 125 |
| 50 2″ | FC: FFG,FPS,FFS-50S BC: BFG,BPS,BFS-50S | 75 | (155)160 | 150 |
