Daido Machines

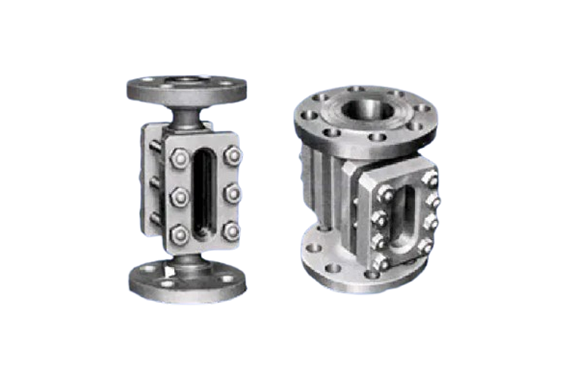

Daido Square Window
Manufacturer: DAIDO MACHINES CO., LTD
Features
- Squire window sight glasses are suitable for high pressure lines.
- Available materials are carbon steel, stainless steel any other unique materials.
- For low temperature use, nonfreezing type sight glasses are available.
Specifications
| End Connection | Design | Material |
|---|---|---|
| Flanged | Welded | Carbon Steel (SGP, STPG370, etc) Stainless Steel (304, 304L, 316, 316L) Lining (Glass, Rubber, Teflon Coating) Special Metals (LF-2, Titanium, Hastelloy, etc) |
| Machined | Forged (S25C, A105, SF440A, SUS) Special Metals (Titanium, Hastelloy, etc) | |
| Screwed | Welded | Carbon Steel (SGP, STPG370, etc) Stainless Steel (304, 304L, 316, 316L) Lining (Glass, Rubber, Teflon Coating) Special Metals (LF-2, Titanium, Hastelloy, etc) |
| Machined | Forged (S25C, A105, SF440A, SUS) Special Metals (Titanium, Hastelloy, etc) | |
| Socket Weld | Welded | Carbon Steel (SGP, STPG370, etc) Stainless Steel (304, 304L, 316, 316L) Lining (Glass, Rubber, Teflon Coating) Special Metals (LF-2, Titanium, Hastelloy, etc) |
| Machined | Forged (S25C, A105, SF440A, SUS) Special Metals (Titanium, Hastelloy, etc) |

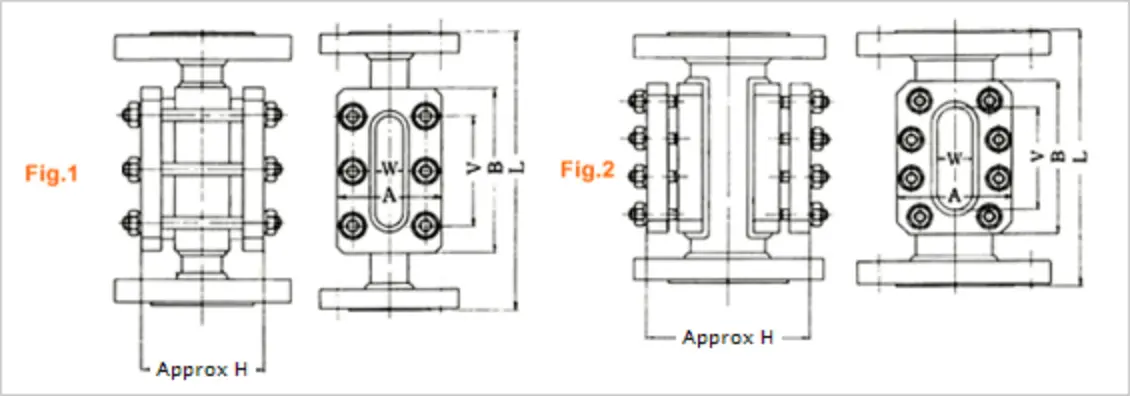

Dimensions (mm)
