Manufacturer: DAIDO MACHINES CO., LTD

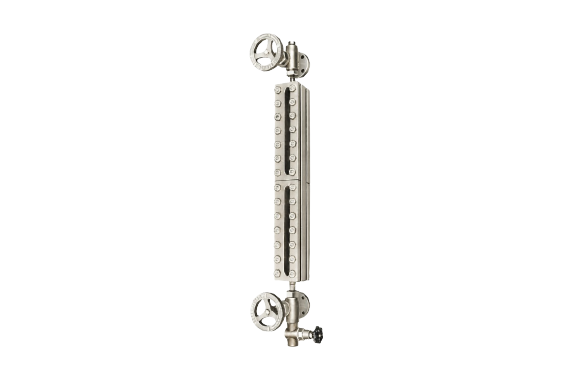

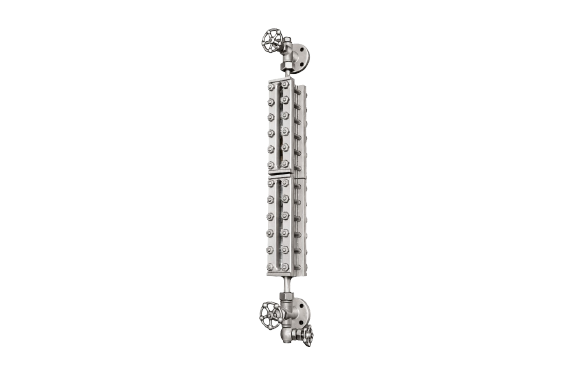

Model: Transparent Type

Feature

• A transparent type level gauge consists of body with glass and cover securely tightened by stud bolts. It is hermetically sealed.
• Transparent type level gauges are suitable for observing liquid level through the transparent glasses. Regardless of fluid colors it can be used perfectly.
• For high temperature use, MICA is placed to wetted surfaces in order not only to protect the glass but to have anti-corrosion and heat-resistant effects.
• Also, a lighting device is available to check fluid layers even more clearly. Transparent type level gauges are equipped with a ball check valve (emergency shut-off valve).

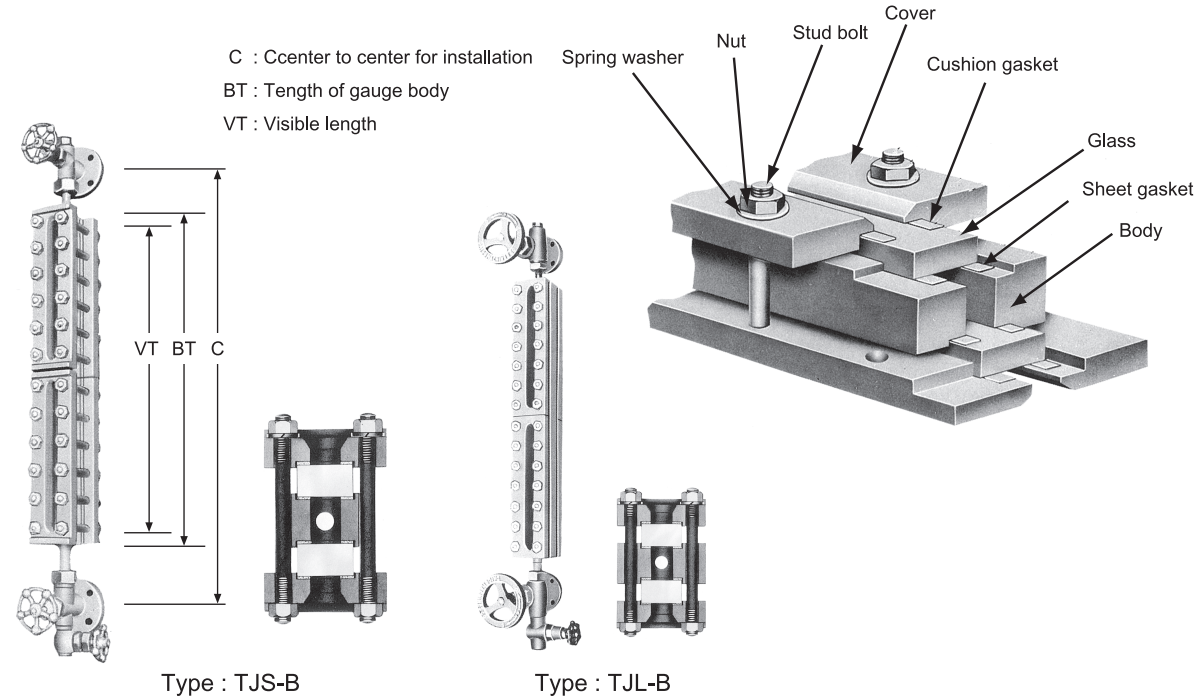

Dimensions
