Daido Tubular Type Level Gauge
Manufacturer: DAIDO MACHINES CO., LTD
Model: Tubular Type
Feature
- Structure of tubular type level gauges is very simple and the tubular type level gauges are most wildly used.
- They are used at 5kgf/cm2 (5barG) and lower pressure.
- Every tubular level gauge; except for TUP-7 series, is equipped with a ball check valve (emergency shut-off valve).
Specifications

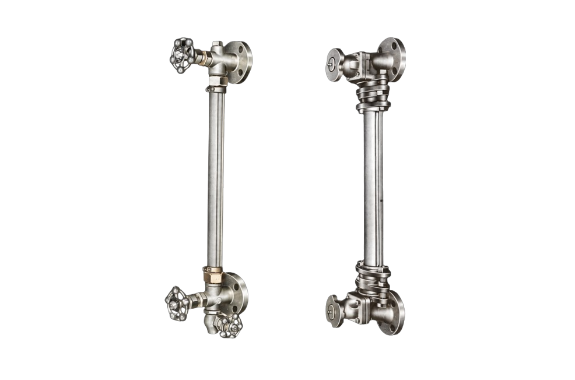

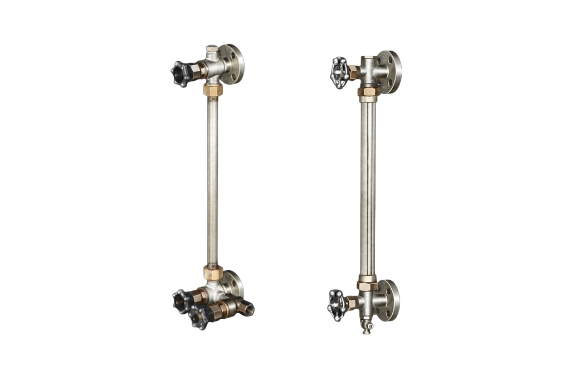

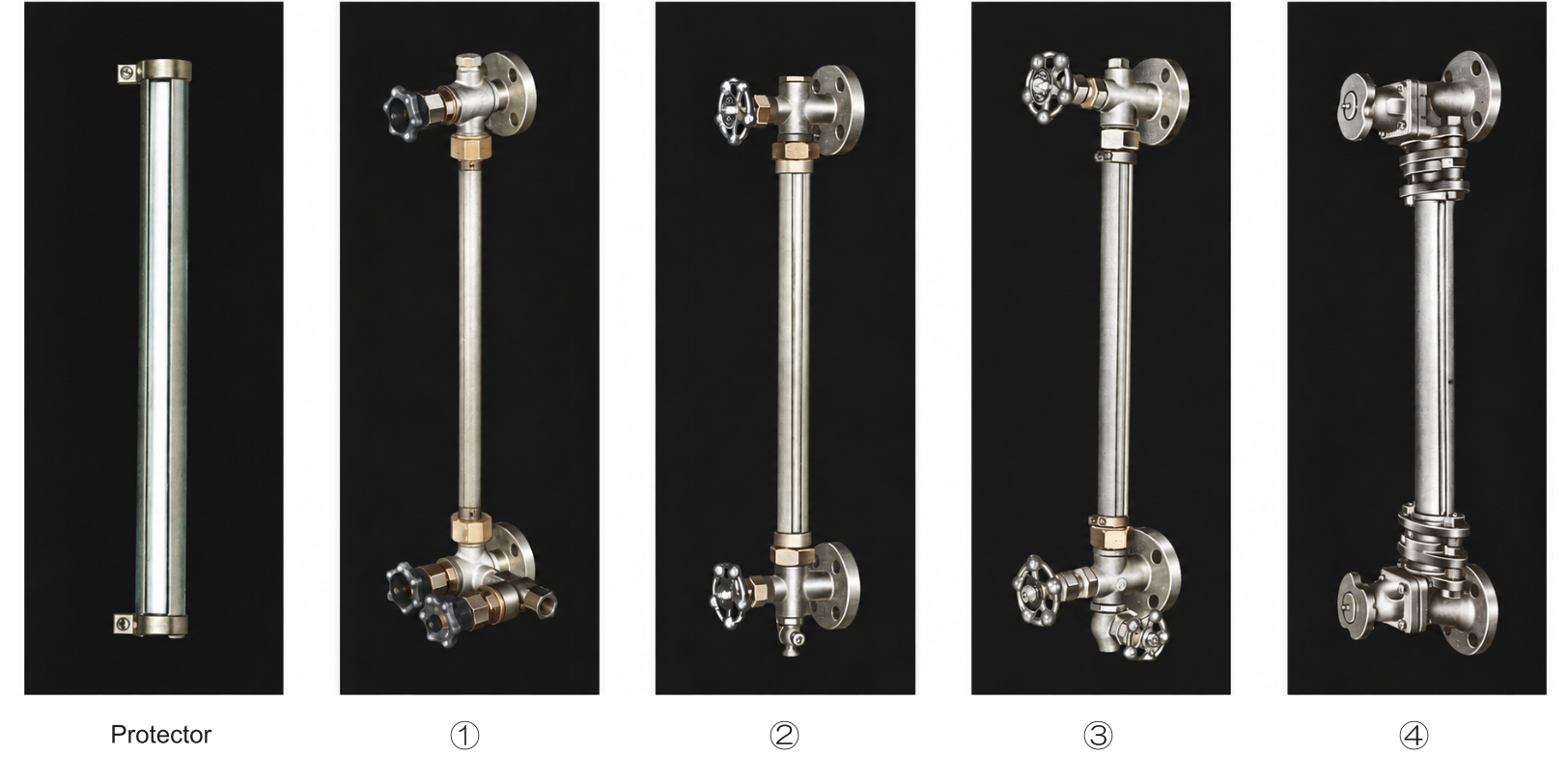

| TYPE | ① TUP-9C | ② TUP-5B | ③ TUP-6F TUP-64 TUP-66 TUP-66L | ④ TUP-7R TUP-7G |
| MATERIAL | PVC | FC | CARBON STEEL SUS304 SUS316 SUS316L | FC/RL Natural hard rubber lining FC/GL Glass lining |
| V | C-165mm | C-140mm | C-150mm | C-220mm C-266mm |
| G | Φ19XΦ13 | Φ19XΦ13 | Φ19XΦ13 | Φ25XΦ19 |
| H | Approx. 80mm | Approx.115mm Approx.110mm Approx.115mm Approx.80mm |
Material
| TYPE | TUP-9C | TUP-5B | TUP-6F TUP-64 TUP-66 TUP-66L | TUP-7R TUP-7G |
| ① | ② | ③ | ④ | |
| MATERIAL | PVC | FC | CARBON STEEL SUS304 SUS316 SUS316L | FC／RL natural hard rubber lining FC／GL Glass lining |
