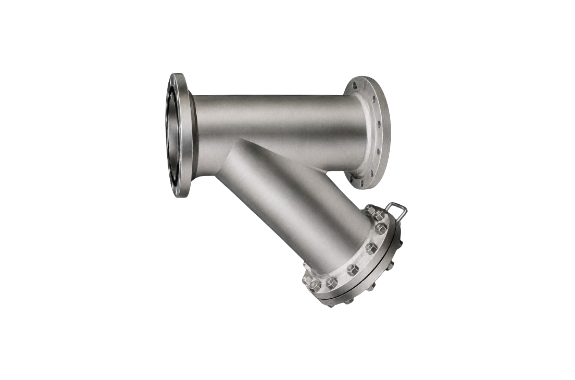

Daido Y-Type Strainers Y1 Type
Manufacturer: DAIDO MACHINES CO., LTD
Model: Y1 type
Feature
- An element of Y-type strainer is to be taken out obliquely downward.
- Compared with Bucket strainers, Y-type strainers are more suitable for small/medium sizes.

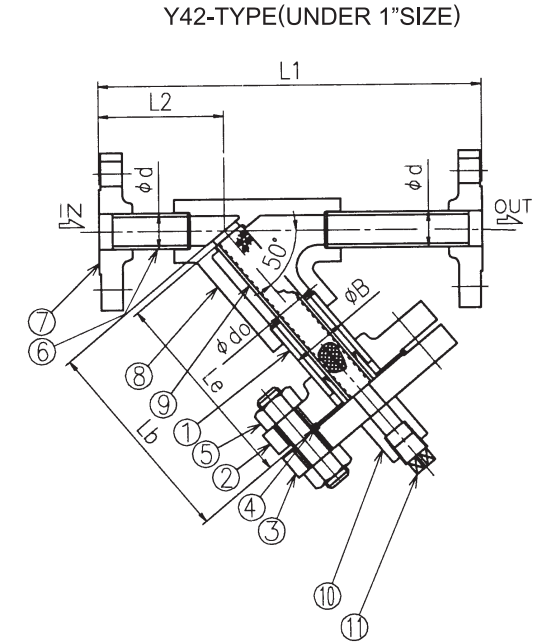

Drawing
| NO. | NAME |
| 1 | Body pipe |
| 2 | Body flange |
| 3 | Cover flange |
| 4 | Gasket |
| 5 | Bolt/nut |
| 6 | Line pipe |
| 7 | Line flange |
| 8 | Seat plate |
| 9 | Element |
| 10 | Name plate |
| 11 | Handle |
| 12 | Drain boss |
| 13 | Drain plug |
Dimension (Unit : mm)
| Connection Size (φd) | L1 | L2 | P1 (B) | Element | Weight (kg) | ||
| 150Lb | 300Lb | d0 | ℓ | 150Lb / 300Lb | |||
| 40A | 270 | 320 | 60 | 3/8″ | 28 | 220 | 9 / 15 |
| 50 | 290 | 340 | 70 | 3/8″ | 38 | 240 | 13 / 18 |
| 65 | 320 | 370 | 80 | 3/8″ | 50 | 270 | 20 / 28 |
| 80 | 320 | 420 | 90 | 1/2″ | 60 | 305 | 25 / 37 |
| 100 | 400 | 500 | 105 | 1/2″ | 80 | 345 | 39 / 60 |
| 125 | 450 | 550 | 110 | 1/2″ | 100 | 390 | 53 / 84 |
| 150 | 490 | 600 | 130 | 1/2″ | 120 | 430 | 66 / 107 |
| 200 | 600 | 700 | 160 | 1/2″ | 170 | 530 | 113 / 174 |
| 250 | 680 | 850 | 190 | 3/4″ | 220 | 620 | 177 / 274 |
| 300 | 800 | 950 | 220 | 3/4″ | 250 | 750 | 272 / 404 |
| 350 | 930 | 1000 | 270 | 1″ | 275 | 900 | 370 / 463 |
| 400 | 1050 | 1100 | 295 | 1″ | 310 | 1000 | 506 / 714 |
