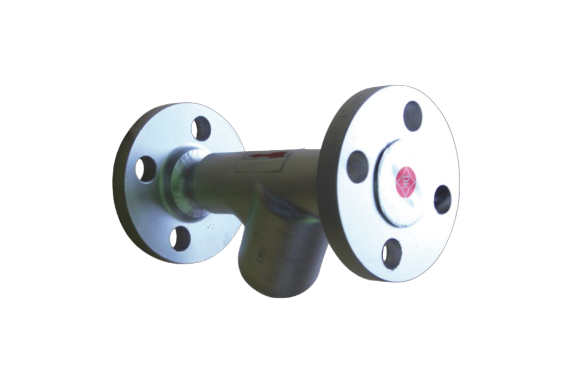

Daido Y-Type Strainers Y41 Type
Manufacturer: DAIDO MACHINES CO., LTD
Model: Y41 type
Feature
- These Y-type strainers have their cylindrical elements in the obliquely lower portion.
- The elements can be taken out in the oblique downward direction by removing their cover their type.
- Compared with the bucket type, y-type strainers are more suitable for small or medium nominal diamters.

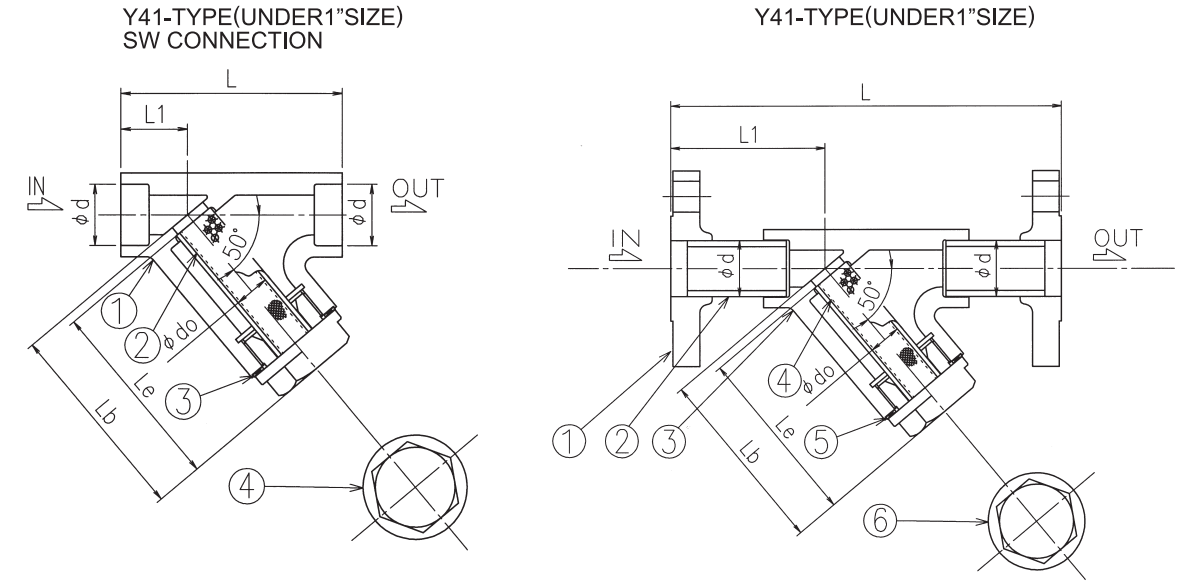

Drawing
| NO. | NAME |
| 1 | Line flange |
| 2 | Line pipe |
| 3 | Body |
| 4 | Element |
| 5 | Gasket |
| 6 | Cap |
Dimension (SW Connection)
| CONN.SIZE φd | L | L1 | Lb | ELEMENT | WEIGHT (kg) | |
| φ d0 | Le | |||||
| 15A | 1/2″ | 100 | 30 | 20 | 70 | 1 |
| 20A | 3/4″ | 100 | 30 | 20 | 70 | 1 |
| 25A | 1″ | 130 | 40 | 30 | 85 | 2 |
Dimension (Under 1” Size)
| CONN.SIZE φd | L | L1 | Lb | ELEMENT | WEIGHT (kg) | |
| φ d0 | Le | |||||
| 15A | 1/2″ | 190 | 75 | 20 | 70 | 3 |
| 20A | 3/4″ | 190 | 75 | 20 | 70 | 3 |
| 25A | 1″ | 230 | 90 | 30 | 85 | 5 |
